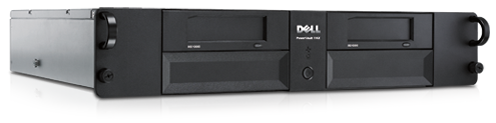

Dell PowerVault 114T/114X Tape Rack Enclosure
Superior capacity in a 2U form factor

Overview:

The Dell PowerVault™ 114T/114X tape rack enclosure allows up to two tape drives to be externally attached to up to two PowerEdge™ rack servers or PowerVault network attached storage systems.

The Dell PowerVault™ 114T/114X rackable subsystem is a convenient 2U tape rack enclosure. It incorporates many tape technologies commonly used today and is designed to complement Dell PowerEdge™ rack servers and Dell PowerVault network attached storage (NAS). The Dell PowerVault 114T/114X tape rack enclosure offers superior capacity in a 2U form factor.

• PowerVault 114T can be configured with one or two LTO-3 (Full-Performance), LTO-3-060, LTO-2-L or DAT72 tape.
• PowerVault 114X can be configured with one or two LTO3-080, LTO-4-120 and LTO5-140 tape, as well as one or two RD1000 drives.

RD1000 Rackable Solution

114X RD1000: Rackable Solution, configurable with up to two RD1000 drives bases and upgradeable up to four drives using drive upgrade kit USB. The USB cables come in two different lengths of 2M and 3M. Includes Symantec™ Backup Exec™ Quickstart for easily scheduled backups.

Removable Disk Drive vs. Other Storage

The benefits of using a high-capacity, removable disk drive and accompanying cartridge like the Dell PowerVault RD1000 are evident when compared to alternative backup media. Rugged, removable disk media offers increased portability and durability over standard USB-based hard drive storage.

The PowerVault RD1000 cartridges are built to withstand a fall from nearly one meter so they are very durable, plus the removable disk cartridges are small and lightweight and can be stored offsite for better disaster recovery protection. The PowerVault RD1000 provides easy expandability, when you reach capacity with one removable disk cartridge, just insert in a new one — there's no need to buy additional hardware. Plus the PowerVault RD1000 includes Symantec Backup Exec Quickstart software that provides data protection for faster data restores and reduced downtime.

The PowerVault RD1000 features a protective disk drive cartridge that is available in 160 GB, 320 GB, 500 GB, 640 GB and 1 TB capacities. The RD removable disk cartridges are all interchangeable and preformatted. Archiving a collection of PowerVault RD1000 disk cartridges takes considerably less room than a similar amount of DVDs or CDs — it would take 36 standard DVDs to hold the volume of a single 320 GB removable disk cartridge — all while saving shelf space.

Symantec Backup Exec Quickstart included with the PowerVault RD1000 provides easy-to-use, backup and disaster recovery capabilities to protect files, as well as all user data to help provide faster restores and reduced downtime.

Intuitive Management

The PowerVault RD1000 provides Symantec Backup Exec Quickstart software for a complete backup of all of your system data. This easy-to-use software includes backup protection for Windows user and bare metal disaster recovery on all compatible Dell PowerEdge server and Dell Workstations.

Symantec Backup Exec Quickstart included with the PowerVault RD1000 provides easy-to-use, backup and disaster recovery capabilities to protect files, as well as all user data to help provide faster restores and reduced downtime.

Hard Drive Speed and Reliability

The PowerVault RD1000 removable disk cartridge contains a serial ATA (SATA) II hard drive, the same technology that Dell uses across the PowerVault disk storage line, the PowerEdge server line, and the Dell Precision™ Workstations external drive. SATA II hard drive technology is a reliable, industry-standard for storage, and an ideal long-term and durable media. Files transfer to the PowerVault RD1000 at about the same time it would take to save to your regular PC drive, up to 30 MB/sec — much faster than backing up to standard tape, and without the hassle of swapping out media due to capacity constraints.

Cartridge Drop Test:
RD1000 160 GB, 320 GB, 500 GB, 640 GB and 1 TB cartridges have been qualified to withstand a drop of 1M to a tile over concrete floor. In most cases the RD1000 cartridges can withstand drops of up to 1.5M.

Tough and Compact Form

The PowerVault RD1000 functions lying flat or on its edge, and its compact profile takes up very little space on a desk, or close to your server, enabling a backup solution that doesn't require rethinking your office arrangement. The removable disk cartridge is designed for durability, and easily fits into a briefcase, backpack, or even a coat pocket.

The PowerVault RD1000 simple plug-and-play USB connection enables you to backup more than one system, or move it from home to office as you need. Each removable disk drive cartridge weighs about as much as a cell phone, and is only slightly larger.

Key Benefits:

Space-Conscious, Flexible Capacity

The Dell PowerVault 114T/114X rackable subsystem offers a cost-effective, scalable solution for a variety of tape backup and archival needs. Holding up to 6.0 TB of native data (when using two LTO-5-140 drives), it provides excellent capacity in a 2U form factor that addresses your critical space concerns. Plus, it can be configured with up to two LTO-5-140, two LTO-4-120, two LTO-3, full-performance or two LTO-3-060 tape drives for exceptional flexibility and scalability.

Performance

The PowerVault 114T/114X incorporates many tape technologies commonly used today and is designed to complement Dell PowerEdge rack servers and Dell PowerVault network attached storage. When configured with LTO™ drives, the PowerVault 114T/114X delivers impressive performance and high levels of reliability, giving you a dependable, high-performance backup solution. What's more, two SCSI ports or two SAS ports with LTO-3-060, LTO-3 full performance, LTO-4-120 and LTO-5-140 enable two drives to run in parallel, which can help reduce backup time for multiple server environments.

Capacity

The PowerVault 114T/114X holds up to 3.0 TB of compressed (2:1) data when using LTO-5-140 drives (114X). This allows a very high capacity for backing up in a slim-rack optimized format.

Ease of Use

As an extension to the PowerVault lineup of products, the PowerVault 114T/114X allows you to easily connect drives externally while still incorporating a rack-optimized backup solution into your environment. Compatible with Dell rail kits, the tape rack enclosure can typically be installed in minutes.

The PowerVault 114T/114X offers easy manageability. It is simple to deploy, use and maintain with a tool-less chassis that enables you to install or remove a drive or component quickly. And the top of the unit is removable to allow easy access to the drives and components. Plus, it features two drive bays, two SCSI/SAS cables, a power supply and fans. The subsystem also includes two status LEDs on the front bezel so you know at a glance that your system is operating correctly. The PowerVault 114T/114X is ideal for customers who require an affordable, simple-to-use tape storage solution that incorporates a wide range of tape technologies while providing exceptional capacity and performance in a small form factor.

Reliability

The PowerVault 114T/114X uses highly reliable "super drives" in the LTO-5, LTO-4, LTO-3 and LTO-3-060 drive technologies which typically boast 250,000 MTBF (Mean Time Between Failure) and can be counted on to provide solid reliability to help increase uptime.

Introducing Dell Pro Support

Designed to address the technology challenges you face today. Designed for IT professionals like you, Dell ProSupport¹ for IT provides 7x24 direct access to Dell Expert Centers, fast-track dispatch of parts and labor without phone troubleshooting when desired for Dell-certified technicians, and escalation management through Dell's Global Command Centers. In addition, Dell ProSupport Options align with the way you use technology by providing rapid response to your needs, protecting your investment, productivity and sensitive data, and enhancing proactive support services to reduce the risk and complexity of managing your infrastructure.

Speed of Response
With the Mission Critical option you get priority response for server and storage environments where avoiding unplanned downtime and reducing recovery time are critical. Includes priority 4-hr onsite service or optional 2-hr response with 6-hr hardware repair, Dell's proven Critical Situation process, and emergency dispatch.

Protection
With Keep your Hard Drive³ you retain control of your sensitive data and comply with data privacy regulations (to help mitigate regulatory and civil liability risks) by keeping your hard drive.

Premium Proactive
With the Enterprise-Wide Contract option, you get enhanced, proactive capabilities via a designated Service Delivery Manager, performance benchmarking and custom reporting, and planning and assessments. Our Proactive Maintenance option proactively maximizes the availability and stability of your infrastructure. Includes a detailed system assessment and implementation of driver or firmware updates and upgrades for your server or storage systems. Remote Advisory Options provides telephone and Internet access to technical expertise for specialized applications and solutions such as Microsoft Exchange, Virtualization, and more.

Additional Service Offerings

Comprehensive Storage Training and Certification
Provides expertise for integrating Dell storage into an existing IT infrastructure. For company compliance, an advanced Certification path is available for validating or maintaining skill sets.

Backup and Recovery
Solutions that help ensure adequate procedures are in place to minimize or avoid data loss.

Storage Consolidation
Our storage experts can analyze your existing infrastructure, operational practices and technical readiness, and develop a detailed consolidation deployment plan that includes a validated and refined solution design.

¹ProSupport Technical Support: Must be purchased in conjunction with Limited Warranty. The ProSupport Queue is designed to provide 2 minutes or less average speed of answer, provided the correct, toll-free ProSupport number is called by the customer. Hold times in the ProSupport Queue may be affected by multiple variables including, but not limited to: time of day, product release cycle, product recall occurrences and total number of ProSupport customers.
²ProSupport Service Plans: Service may be provided by a third party. Technician will be dispatched if necessary in parallel with phone-based troubleshooting for severity level 1 issues on systems with ProSupport Mission Critical or Same Day Response service. Technician will be dispatched if necessary following phone-based troubleshooting for all other severity levels and on-site response service levels. Repair time is measured from dispatch time of the on-site response service. Subject to parts availability, geographical restrictions and terms of service contract. Service timing dependent upon time of day call placed to Dell. U.S. only.
³The defective hard drive must still be covered by the hardware limited warranty

Technical Specifications:

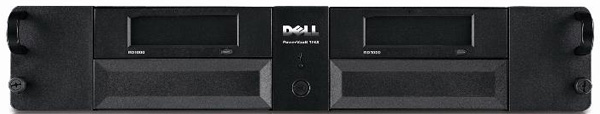

Front View

PowerVault 114T/114X Tape Rack Enclosure
Drives And Performance
Form Factor	2U rack enclosure
Easy to Use	Tool-less design
Storage Capacity (Native)	With two LTO-5-140 drives: up to 3.0 TB Native (114x) With two LTO-4-120 drives: up to 1.6 TB Native (114x) With two LTO-3 (full-performance) drives: up to 800 GB Native With two LTO-3-060 drives: up to 800 GB Native
Backup Rate (Native)	With two LTO-5-140 drives: up to 1008 GB/hr (114x) With two LTO-4-120 drives: up to 864 GB/hr Native (114x) With two LTO-3 (full-performance) drives: up to 576 GB/hr Native With two LTO-3-060 drives: up to 432 GB/hr Native
Reliability	250,000 hours MTBF2 at 100% duty cycle
Hardware	PowerEdge Servers and PowerVault products (See Dell PowerVault Compatibility Matrix for Servers and NAS products supported)
Operating Systems	Microsoft Windows Server 2003 Microsoft Windows Server 2008 and Win2008R2: Red Hat Enterprise Linux SUSE Linux Enterprise Server (See Dell PowerVault Compatibility Matrix for version numbers of backup software supported and others software options)
Backup Software Supported	Windows, Novell NetWare, and Linux Symantec™ Backup Exec™ for Microsoft Windows and Novell NetWare CommVault Galaxy™ for Microsoft Windows, Novell NetWare, and Linux (See Dell PowerVault Compatibility Matrix for version numbers of backup software, OS supported and others software options)
Physical
Height	3.45" (87.26 mm) for 114T; 3.42" (86.9 mm) for 114X
Width	16.75" (425.45 mm) for 114T; 19.0" (482.5 mm) for 114X
Length (Depth)	20.5" (520.7mm) for 114T; 18.93" (480.7 mm) for 114X
Shipping Weight	64 lbs max with LTO-3 Tape Drive
Orientation	Horizontal
Configurations	Rack mount
User Interface	The user interface includes a power on/off switch and an LED for fan status on the front panel. The power indicator LED will indicate green when the system is powered on. If a fan should fail the status LED will indicate yellow and remain yellow until the system is power cycled. The tape drives are accessible from the front.
Environmental
Operating Temperature	50 to 104 degrees F (10 to 40 degrees C)
Non-operating Temperature	Drive Dependent
Operating Humidity	20 to 80%
Non-operating Humidity	Drive Dependent
Power
Power Requirements	100-208 VAC
Power Consumption	Up to 85w with two drives running

Services:

Having the right backup solution is key to protecting your critical information. So is having the right support. Dell ProSupport™ is a portfolio of globally consistent, customer-driven support services that provides businesses of all sizes with flexible, reliable and easier support solutions.

Dell ProSupport starts with the Dell ProSupport for IT service model designed for IT professionals like you. Dell ProSupport for IT provides:

• 24x7 Direct access to Dell Expert Centers
• Fast-track dispatch for Dell certified technicians
• Escalation management through Dell’s Global Command Centers

Next, Dell ProSupport Options align to the way you use technology — rapidly responding to your needs, protecting your investment, productivity and sensitive data, and providing enhanced proactive support services to reduce the risk and complexity of managing your infrastructure.

Speed of Response	Protection	Premium Proactive
Mission Critical — Perfect for server and storage environments where avoiding unplanned downtime and reducing recovery time through priority response are a must. The package includes priority 4-hour on-site2 service or optional 2-hour response with 6-hour hardware repair, Dell's proven Critical Situation process and emergency dispatch.	Keep Your Hard Drive — Enables you to control your sensitive data by retaining your hard drive and helps you comply with current data privacy regulations to help mitigate risks associated with regulatory or civil liabilities.	Enterprise-Wide Contract — Provides enhanced proactive capabilities through: Designated Service Delivery Manager Performance benchmarking and custom reporting Planning and assessments Proactive Maintenance — Maximizes the availability and stability of your infrastructure proactively. The package includes a detailed system assessment and implementation of driver or firmware updates and upgrades for your server or storage systems.  Remote Advisory Options —Provides telephone and Internet access to technical expertise for specialized applications and solutions such as Microsoft® Exchange, Virtualization and more.
Basic Hardware Warranty
Basic Support Ideal for nonessential application environments. This service offers business-hour, phone-based support* for hardware-only issues with Next Business Day On-Site Service following completion of phone-based troubleshooting.
Additional Service Offerings
Comprehensive Storage Training and Certification Through comprehensive storage training courses, Dell provides expertise in implementing Dell storage into an existing IT infrastructure. If you are interested in validating or maintaining your skill sets for company compliance, the Dell Certified Network Storage Networking Professional Certification path is available. Backup and Recovery To sustain the continued operation of your storage solution, you should engineer availability, security and reliability into every process from the outset. Dell can provide backup and recovery solutions that help ensure adequate procedures are in place to minimize or avoid data loss. Storage Consolidation Our storage experts analyze existing infrastructure, operational practices and technical readiness to develop a roadmap for conducting a storage consolidation. They will also develop a detailed consolidation deployment plan as well as a validated and refined solution design.

Removable Disk Drive vs. Other Storage:

Compare PowerVault RD1000 to alternative storage options:
Storage Product	PowerVault™ RD1000 Removable Disk Backup	Competitor Removable Disk Backup	Removable Disk Drive Storage	External Hard Drive	DLTVS160 Tape Drive	DAT72 Tape Drive	Travan 40 Tape Drive
Description	Removable Disk Drive	Removable Disk Drive	Removable Hard Disk Drive	External HD Drive	Tape Drive	Tape Drive	Tape Drive
Acquisition Cost*	••	•••	•••	•	•••••	••••	•••••
Additional Media Cost per 160GB*	ØØ	ØØØ	ØØ	NA	Ø	Ø	ØØ
Capacities Available	160GB,  320GB,  500GB,  640GB,  1TB	40GB,  80GB, 120GB, 160GB	35GB, 70GB	80GB	80GB	36GB	40GB
Transfer Rate	80 MB/s	30 MB/s	30 MB/s	41 MB/s	8 MB/s	3.6 MB/s	4 MB/s
Removable Media?	Yes	Yes	Yes	No	Yes	Yes	Yes
Form Factors	Internal, External or Rack Mount	Internal, External or Rack Mount	Internal, External or Rack Mount	External only	Internal, External or Rack Mount	Internal, External or Rack Mount	Internal, External or Rack Mount
Available Interface	SATA and USB	SATA and USB	SATA, SCSI, USB, Firewire, ATAPI	USB and Firewire	SCSI only	USB and SATA	USB and ATAPI
