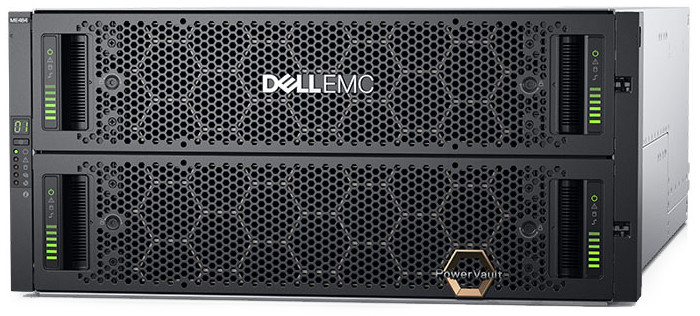

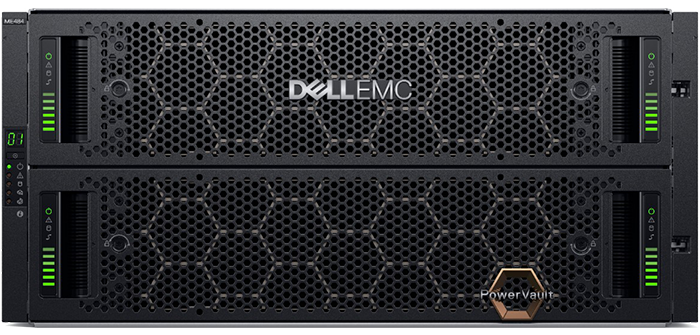

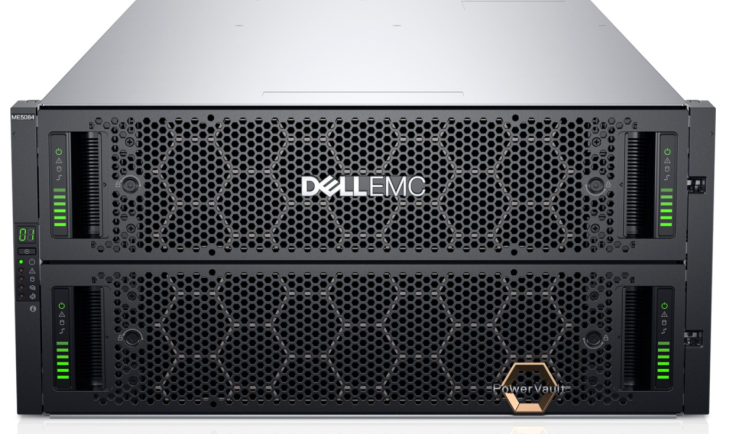

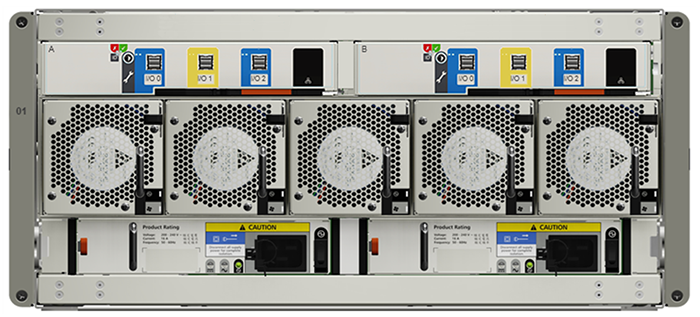

Dell PowerVault ME5084 Storage Array

Overview:

PowerVault ME5 is the new gold standard for entry storage with blazing speed, higher capacity limits and even greater simplicity. PowerVault ME5 is a block-level entry storage platform with a dual-active controller architecture — optimized for SAN and DAS — ideal for high-performance computing, databases, small-scale VDI, security workloads and much more.

Entry storage purpose-built and optimized for SAN/DAS

The, simple, fast and affordable Dell PowerVault ME5 storage platforms are optimized to run a variety of mixed workload applications – physical and virtual – for small to medium size businesses. Whether you need to consolidate your block storage, support applications without the need for low latency flash and NVMe, take advantage of intelligent data management or scale capacity to keep pace with data growth, then PowerVault ME5 is ready to meet your growing business needs. The flexibility of PowerVault ME5 offers multiple protocols, supports a wide range of drive types and capacities, scales up to 8PB1 capacity, validated with Dell PowerEdge Servers (16G ready) and is delivered to you with all-inclusive software – so you’ll have the needed data services to store, manage, and protect your data.

Using fast Intel Xeon processors, Dell PowerVault ME5 storage implements a dual-active controller architecture, 12GB/sec read and 10GB/sec write throughput and uses a 12Gb SAS backend protocol for rapid capacity expansion.

Dell PowerVault ME5 base system and expansion models

The two non-dense ME5 base arrays start at 2U and the dense ME5 array starts at 5U. The base models all support dual-active controllers with each controller including 16GB of memory.

Optional ME5 expansion enclosures let you scale up to 336 drives or 8PB1 . PowerVault ME412 and ME424 expansion enclosures can only be used with either ME5012 or ME5024 base arrays. The ME484 dense expansion enclosure is supported behind any of the ME5 base arrays. A variety of SSD, 10K and NLSAS drives (including FIPS-certified SEDs) are available.

Features:

All-inclusive software innovation

PowerVault ME5 storage arrays deliver all the software you’ll need to store, manage and protect your data:

ADAPT (Distributed RAID): Improved data protection functionality that delivers faster drive rebuild times
Thin Provisioning: Allocate and consume physical storage capacity as needed in disk pools
Snapshots:Easily recover data with point-in-time copies
Replication:Replicate data to any global location and PowerVault ME storage system
Volume Copy:Enables seamless volume relocation and disk-based backup and recovery
SSD Read Cache: Increase execution speed of applications by caching previously read data
3-Level Auto-tiering:Optimizes data performance with less expense
Virtualization integration:Integrate ME5 arrays with VMware vSphere and vCenter SRM and Microsoft Hyper-V

All-around simplicity

All-inclusive software simplicity

PowerVault ME5 provides features that simplify tasks such as system installation, configuration, and serviceability enabling IT generalists to manage resources more efficiently and focus on the bigger picture.

Intuitive web-based (HTML5) management
Simple to order with all-inclusive software
Configurable in minutes
Easily expandable

Optimized for SAN and DAS

PowerVault ME4 Series is purpose-built and optimized for SAN and DAS virtualized workloads. Connecting the PowerVault ME4 Series to a Dell PowerEdge Server to address the challenges of server capacity expansion or to a SAN for flexibility and PowerVault ME5 is purpose-built and optimized for SAN and DAS workloads. Connecting the PowerVault ME5 to a Dell PowerEdge server to address the challenges of server capacity expansion or to a SAN for flexibility and scalability ensures that business applications will always get high-speed and reliable access to their data – without compromise.

Direct-attach to Dell PowerEdge servers
Consolidate SAN storage

Protect your data

Keep your valuable information safe with these PowerVault ME5 features:

Replication:Replicate data to any global location with either ME4 or ME5 target arrays and support for mirroring and thin-provisioned pools.
Snapshots:Easily recover files after accidental deletion or alteration with Re-direct-on-Write snapshot copies.
Virtual Disk Copy (VDC):Enable quick and seamless virtual disk relocation and disk-based backup and recovery with a full, replicated copy of source data.
Self-encrypting drives (SEDs):Render data useless to unauthorized users with drive-level encryption, even if the drive has been removed from the enclosure.

Improved hardware and performance

Greater performance and capacity

PowerVault ME5, with faster Intel Xeon processors, dual-active controllers and a robust operating environment delivers:

Up to 640K IOPs performance
12GB/s Sequential Read & 10GB/s Sequential Write throughput
Up to 6.72PB capacity (Firmware is designed to support up to 8PB)
12Gb SAS backend for rapid capacity expansion
ME5 firmware is designed to support up to 8PB as higher drive capacities are validated

Simple to navigate and configure, PowerVault ME5 is easy to provision and manage from anywhere, anytime with an intelligent, HTML5 web-based GUI. PowerVault Manager also helps alert you to identify problems and identify and resolve issues quicker.

Simplified management

Easily configure, provision and manage PowerVault ME5 from anywhere, anytime with an intelligent, HTML5 web-based GUI. PowerVault Manager also helps alert you to identify problems and identify and resolve issues quicker.

CloudIQ Storage Analytics

CloudIQ is Dell’s cloud-based AIOps application that uses telemetry, machine learning, and predictive analytics to provide PowerVault ME5 proactive health notifications, remediation advice, capacity projections, reclaimable storage identification, and more. CloudIQ is available with Dell ProSupport and ProSupport Plus services for Dell infrastructure systems at no additional cost.

Technical Specifications:

PowerVault ME4 Series	ME5012	ME5024	ME5084
Chassis Overview
Chassis format	All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
Rack size	2U	2U	5U
Controllers	2 hot-swappable per chassis (dual active) Single/dual controller support for 2U	2 hot-swappable per chassis (dual active) Single/dual controller support for 2U	2 hot-swappable per chassis (dual active) Dual controller only support for 5U
Processors	Intel Xeon Processor	Intel Xeon Processor	Intel Xeon Processor
Internal storage	12 x 3.5” drive bays (2.5” drive carriers supported)	24 x 2.5” drive bays	84x 3.5” drive bays (2.5” drive carriers supported)
System memory	16GBper controller (32GB total)	16GBper controller (32GB total)	16GBper controller (32GB total)
Expansion Capacity
Min/Max drive count	2/264	2/276	28/336
Max raw capacity	2.40PB (with 9xME412 expansion) 1.83PB (with 9xME424 expansion) 1.89PB (with 9xME424 expansion) 5.28PB (with 3xME484 expansion)	2.34PB (with 9xME412 expansion) 5.22PB (with 3xME484 expansion)	6.72PB (with 3xME484 expansion)
NAS Support	Supported with NX Series Windows NAS appliance
Storage media	SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system: NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI SDD and HDD: FIPS-certified SEDs
Network and Expansion I/O
Host interface	FC, iSCSI (optical or BaseT), SAS
Max 32Gb FC ports	8 per array (support auto-negotiate to 16Gb)
Max 25Gb iSCSI ports	8 SFP+ or SFP28 ports per array
Max 10Gb iSCSI ports	8 BaseT ports per array (only support auto negotiate to 1Gb)
Max 12Gb SAS ports	8 12Gb SAS ports
Max management ports	2 per array (1Gb BASE-T)
Disk expansion protocol	12Gb SAS
Disk interface expansion ports	2 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array
	ME4012	ME4024	ME4084
Functional
Array configurations	All-flash, hybrid flash, HDD only arrays
Storage format	Native block-level SAN or DAS
Data Optimization
Auto-tiering	Up to 3 primary (media-based) tiers
RAID support	RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
Adapt	Distributed erasure coding that reduces rebuild times when drive failures occur
Thin provisioning	Active by default on all volumes, operates at full performance across all features
Snapshots	1024 maximum snapshots per array
Data Mobility and Migration
Replication	Asynchronous replication via FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5 Target/source relationships may be one-to-many or many-to-one
Volume copy	Copy complete standalone volumes
Data Protection, Disaster Recovery, Security
Business continuity	VMware Site Recovery Manager
Data-at-rest encryption	Self-encrypting drives (SEDs) in SSD or HDD formats Full Disk Encryption (FCE) based on AES-256 Drives certified to FIPS 140-2 Level 2
Key manager	Internal controller key management
Management
Management	PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise 3.9
VMware vCenter	VMware vCenter plugin to manage ME5 arrays through vCenter.
Scripting	CLI API Redfish/Swordfish REST API
Host OS support	Windows 2022, 2019 and 2016 RHEL 8.2 and 7.8 SLES 15.2 and 12.5 VMware 7.0 and 6.7 Citrix XenServer 8.x and 7.x
Virtualization integration	VMware vSphere (ESXi) vCenter; SRM Microsoft Hyper-V
	ME5012	ME5024	ME5084
Physical
Rack size	2U	2U	5U
Height	8.79 cm (3.46 inches)	8.79 cm (3.46 inches)	22.23 cm (8.75 inches)
Width	48.30 cm (19.01 inches)	48.30 cm (19.01 inches)	48.30 cm (19.01 inches)
Depth	61.87mm (24.36 inches)	54.78mm (21.56 inches)	981mm (38.62 inches)
Weight at max configuration	32.00 kg (71.00 lbs)	30.00 kg (66.00 lbs)	135.00 kg (298.00 lbs)
Weight empty	4.80 kg (10.56 lbs) without drives	4.80 kg (10.56 lbs) without drives	64.00 kg (141.00 lbs) without drives
Power
Power/wattage	580W	580W	2200W
Heat dissipation	1980 BTU	1980 BTU	7507 BTU
Voltage	100-240 VAC	100-240 VAC	200-240 VAC
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Amperage	7.6-3.0A (x2)	7.6-3.0A (x2)	11.07-9.23A (x2)
Environmental Operating Conditions
Operating temperature	5°C - 35°C (41°F - 95°F, derated by 1°C per 300mm above 900m)
Non-operating temperature	-40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C
Operating humidity ranges (non-condensing)	-12C dew point minimum, 8% to 85% maximum, non-condensing
Non-operating humidity (noncondensing)	21°C dew point maximum, 5% to 100% maximum, non-condensing
Services, Warranties
Services	Dell ProSupport Enterprise Suite and DellProDeploy Enterprise Suite. Optional ProSupport Plus is available offering pro-active and preventative services to improve performance and stability.
System sizing	Dell Power Sizer

Solutions & Services:

Dell EMC offers complete end-to-end services

Optimizing the IT lifecycle is vital. Dell EMC has expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

ProSupport Enterprise Suite

Gain the freedom to focus on your business transformation with the support expertise and insights Dell EMC is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and service account management.

ProDeploy

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Trust Dell EMC experts to lead deployments from basic hardware installations through planning, configuration and complex integrations. Our complete suite of deployment services and professional certifications helps you achieve business outcomes today and tomorrow.

Training

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.

Documentation:

Dell PowerVault ME5 Storage Arrays Specification Sheet (.PDF)
