Overview:

The Dell PowerEdge T360 offers streamlined productivity, high-speed memory and capacity, and powerful compute to address common business applications. Ideal for:

Small to Mid sized businesses
ROBO / Near-edge
Collaboration and sharing
Real-time database management

The 4.5U, single-socket PowerEdge T360 is a specially designed form factor for customers desiring versatility, affordability, and processing power. The Dell PowerEdge T360 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.

Elevate your enterprise to new heights with PowerEdge T360

Powered by the latest Intel® Xeon® E-2400 processors, Dell PowerEdge T360 is an office-friendly tower server designed for productivity and data intensive applications, making it ideal for your growing business. With 4400/MT DDR5 and advanced NVMe BOSS-N1, it supports reduced latency and seamless scalability to bring the computing capability to the next level. Beyond the computing power, the Dell PowerEdge T360 is equipped with energy-efficient power supply, hot-plug storages, air cooling fans to make it a reliable, responsible and secure choice.

Enterprise-level GPU support

The PowerEdge T360 supports NVIDIA A2 GPU to meet the growing demand in video and audio computing. It provides cost-effective solutions for ROBO and Near-Edge customers from retail, manufacturing and logistics. The PowerEdge T360 is ideal for entry-level GPU customers to address business critical workloads including video surveillance, audio encoding and inferencing, and VDI applications.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with autonomous compute infrastructure

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Sustainability

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies.

Rest easier with Dell Technologies Services

Rest easier with Dell Technologies Services. Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 countries and backed by our 60K+ employees and partners.

Features:

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Your innovation engine

The PowerEdge T360 is a 4.5U, single-socket server designed to address evolving compute demands for SMBs, Remote Office / Branch Office (ROBO) and Near-Edge.

Balance of performance and versatility for the most demanding workloads

The specially designed PowerEdge T360 tower server provides greater flexibility for customers needing versatile, affordable, and virtualization-ready processing power.

Add one Intel Xeon E-2400 series processor with up to eight cores or one Intel Pentium processor with up to two cores for faster and more accurate processing performance
Accelerate in-memory workloads with up to 4 DDR5 UDIMMS up to 4400 MT/sec (1DPC)
Support for GPUs including one single-width 60 W accelerator for workloads requiring acceleration
Storage options include up to 8 x 3.5" SAS/SATA HDD/SDD drives, or, up to 8 x 2.5" SAS/SATA.

Systems Management and Security Solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent Automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Technical Specifications:

Dell PowerEdge T360 Specifications
Processors	One Intel Xeon E-2400 series processor with up to eight cores or One Intel Pentium G7400/ G7400T processor with up to two cores
Memory	4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s Supports unregistered ECC DDR5 DIMMs only
Storage controllers	Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB External HBAs (non-RAID): HBA355e Adpt Software Controller: S160
Drive bays	Front drive bays: Up to 4 x 3.5-inch SATA HDD/SSD, max 64 TB Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB
Power supplies	450 W Platinum 100-240 V AC, cabled 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant
Cooling Options	Air cooling
Fans	One Standard (STD) fan and one optional High performance (HPR) fan Up to two cabled fans
Dimension	Height – 382.5 mm (15.06 inches) Width – 175 mm (6.89 inches) Depth – 579.72 mm (22.82 inches) with bezel
Form Factor	4.5U tower server
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Manual
Bezel	Security bezel or Optional Filter bezel
OpenManage Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Secured-core server Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM card
GPU Options	1 x 60 W SW GPU

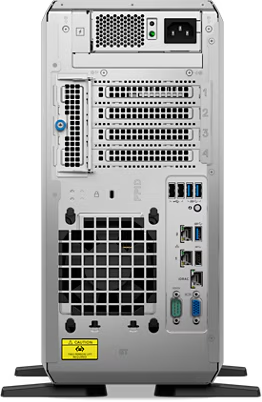

Ports	Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1 Rear Ports 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Dedicated iDRAC Ethernet port 1 x Serial 1 x VGA 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1
PCIe	Up to two PCIe slots Slot 1: x8 Gen4 Full height, half length Slot 2: x16 Gen5 Full height, half length Slot 3: x1 Gen4 Full height, half length Slot 4: x8 Gen4 Full height, half length
Operating System and Hypervisors	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
OEM-ready version availabe	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.

Documentation:

Dell PowerEdge T360 Datasheet (.PDF)

Dell PowerEdge T360
4.5U Tower Server for ROBO / Near-edge and SMB applications
