Overview:

The Dell PowerEdge XR4000 is a high-performance server designed and optimized for edge use cases like

Virtualization Desktop Infrastructure (VDI)
Virtual Machines
Video surveillance
vSAN/VM
Point of sale
Data communication

The new Dell PowerEdge XR4000 is a 2U server with an innovative sled-based design. Dell’s shortest depth server to date is purpose-built for the edge; delivering high-performance compute and ultimate deployment flexibility in two new chassis form factors.Process and analyze data at the point of capture. Designed for workloads at the Edge including virtual desktop integration (VDI), Machine vision, Video surveillance, vSAN/VM, Point-of-sale and Data compression.

New Nano Server

Create a self-contained 2-node VM cluster in a footprint not much larger than a shoebox with dell Nano Witness Server included in-chassis
Rackable chassis supports up to 4 separate server nodes in a single 2U chassis
Storage up to 12 x M.2 NVMe for total capacity of 45Tb per sled

Multi-node design

Uses Intel Xeon D with up to 20 cores per node for ultimate edge performance
Reduce service complexity with a sled-based chassis that allows for a ‘pull-replace-repair’ model
Scale when you need it by adding sleds as your operation demands grow

Purpose-built for the Edge

Can operate in temp ranges from -5C to 55C and is rated to MIL 810H and NEBS Level 3
Gain ultimate deployment flexibility with optional ‘stackable’ and ‘rackable’ chassis with options to mount on walls or place on shelves when space is at a premium
Withstand dusty and harsh environments while providing extra physical security with an optional lockable intelligent filtered bezel

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Sustainability

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.

Rest easier with Dell Technologies Services

Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 locations and backed by our 60K+employees and partners.

Features:

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Compute where you need it

Stack and clip two chassis together for greater performance and flexibility for your edge deployments.

PowerEdge XE8640

High-density, short-depth server designed and optimized for the edge

The PowerEdge XR4000, powered by Intel Xeon D processors, enables scalability and flexibility with a sled-based architecture and multiple mounting options.

Expand as needed with options for 1U or 2U compute sleds and up to 4 servers in a single 2U chassis
Flexible mounting options: rack or wall-mountable chassis
Operate in environments outside of traditional data centers with -5 to 55c operating temperatures
Ideal for analytics, AI inferencing, IoT, vSAN, MEC, point of sale

Systems Management and Security Solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent Automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Technical Specifications:

Dell PowerEdge XR4000r and XR4000z Specifications
Processors	1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores
Memory	4 x DDR4 DIMM slots, supports RDIMM 256 GB max and LRDIMM 512 GB max, with speeds up to 2933 MT/s Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB
Chassis	XR4000r and XR4000z
Sleds	XR4510c, XR4520c and optional XR4000w
Hot Swap Redundant Power Supplies	1800W Platinum 200-240 VAC or 240 HVDC, hot swap redundant 1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant 1100W Platinum 100-240 VAC or 240 HVDC, hot swap redundant (for XR4000r only) 1100W DC/ -48-(-60) V
Fans	Up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds
Dimension	XR4000r Height — 87.05 mm (3.42 inches) Width — 434 mm (17.08 inches) Depth 455.05 mm (17.91 inches) with bezel — 375.28 mm (14.77 inches) without bezel Weight —19.14 kg (42.20 pound) XR4000z Height 97.05 mm (3.82 inches) with sidepanel 87.05 mm (3.42 inches) without sidepanel Width 307 mm (12.08 inches) with sidepanel and bezel 266 mm (10.47 inches) without sidepanel and bezel Depth 455 mm (17.91 inches) with bezel 375.2 mm (14.77 inches) without bezel Weight — 12.16 kg (26.80 pound)
Form Factor	One XR4000w (optional) per XR4000r or XR4000z chassis
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module
Bezel	Security bezel on XR4000r and XR4000z
OpenManage Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin
OpenManage Integrations	BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Network I/O board	4 x 10GbE SFP (max 50 Gb) 4 x 25GbE SFP (max 100 Gb)
GPU	Up to 2 x 150W single-width GPUs or 1 x 250W double-width GPU in XR4520c
Ports	Front ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port Internal port 1 x USB 3.0 (optional)
PCIe	2 PCIe slots: 2 x16 Gen4 (x16 connector) full height, full length in XR4520c
Operating Systems & Hypervisors	Azure Stack HCI Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.

Documentation:

Dell PowerEdge XR4000 Datasheet (.PDF)

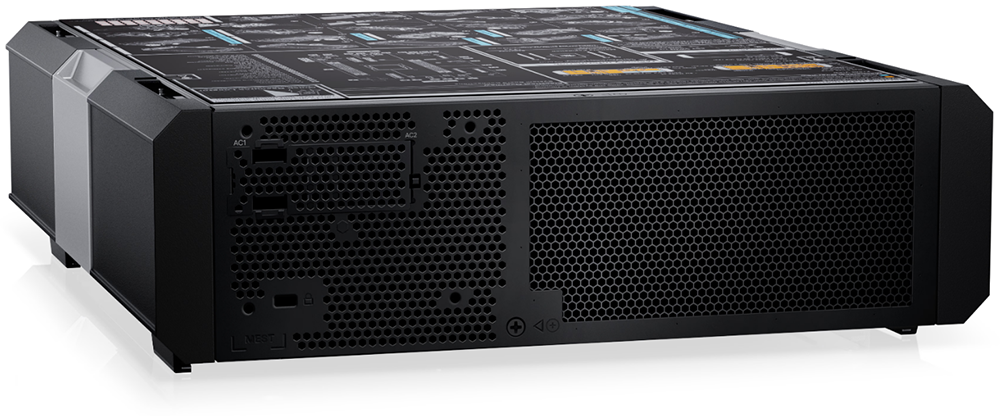

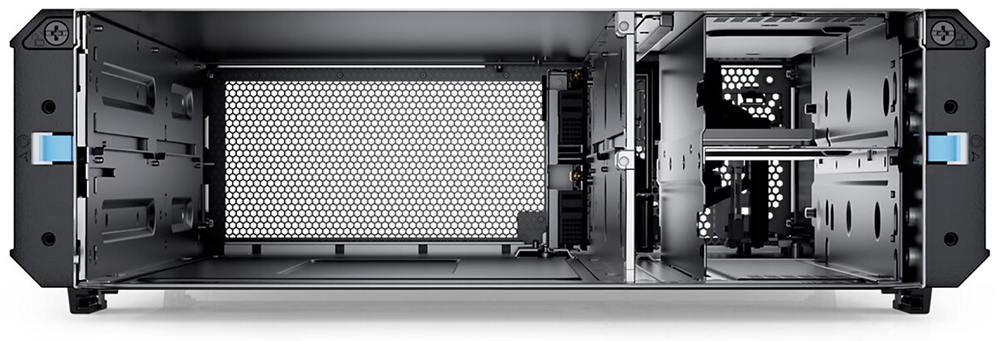

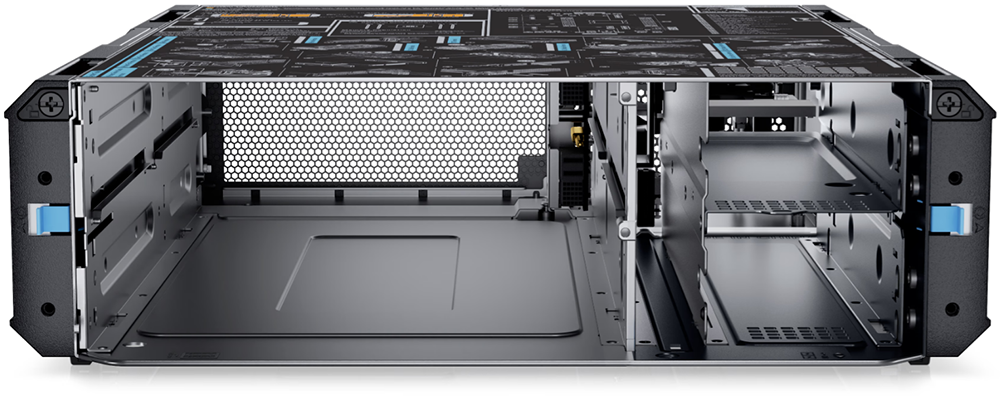

Dell PowerEdge XR4000z
Experience utlimate flexibility with Dell’s shortest depth edge server
