Deduplication Backup Software and System
Please Call for Pricing!
EMC Avamar enables fast, efficient backup and recovery through its integrated variable-length deduplication technology. Avamar is optimized for fast, daily full backups for virtual environments, network-attached storage (NAS) servers, enterprise applications (Microsoft, IBM, Oracle, SAP), remote offices and desktops/laptops. By deduplicating data - identifying only unique daily changes - Avamar reduces backup storage and network bandwidth consumption by up to 95%. All data is always encrypted and compressed in-flight to meet security and compliance regulations. And with EMC CloudBoost, you can use Avamar to deliver long-term retention of backups in the leading private or public cloud of your choice.
Avamar is available standalone or as a component of EMC Data Protection Suite, which offers you a complete suite of data protection software options.
Companies are redefining their backup and recovery solutions to meet the needs of exponential data growth, regulatory compliance, increased service-level agreements, and shrinking backup windows. IT faces additional challenges brought on by accelerated virtualization, converged infrastructure and the need to improve data protection across the enterprise, including remote offices and cloud.
EMC® Avamar® software and system provides flexible deployment options for fast, daily full backups and is part of the Data Protection Suite Family.
- Virtualized and physical environments
- Enterprise applications
- NAS systems
- Remote offices
Avamar provides tight integration with EMC® Data Domain® systems and uses a multistreaming approach with EMC Data Domain Boost™ software – resulting in faster, more efficient backups.
- Reduce network bandwidth usage up to 99%
- Reduce backup storage up to 30x
- Reduce backup times up to 50%
- Up to 30x faster image restore when compared to traditional backups

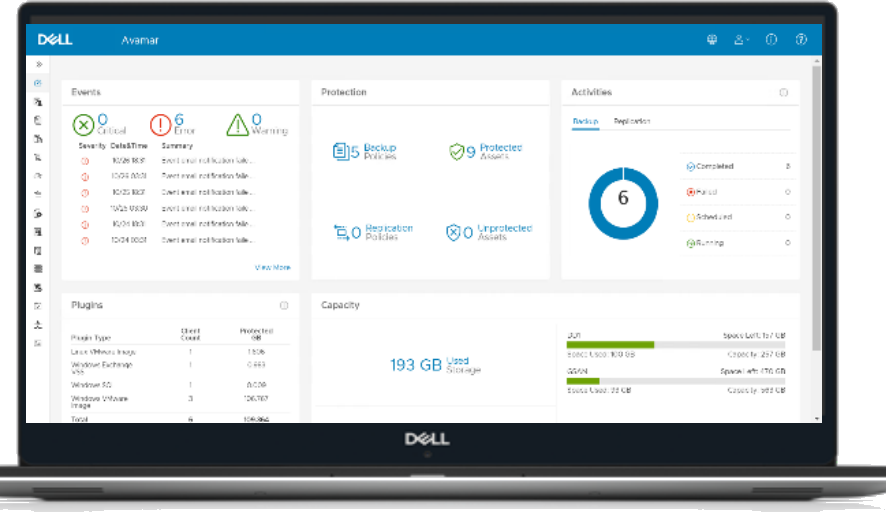

Management is simple through a centralized web-based management and at-a-glance dashboard view, allowing you to protect hundreds of offices worldwide from a single console.
Never Backup the Same Data Twice
Avamar divides backup data into variable-length sub-file segments, compresses and applies a unique hash identifier to each segment during the backup process. Avamar then determines if a segment has been previously backed up and only backs up the unique segments. Avamar will never backup the same data twice.
Highly Efficient Data Deduplication
Avamar employs the most efficient client-side deduplication on the market. Variablelength deduplication significantly reduces backup time by only storing unique segments while maintaining daily full backups for immediate, single-step image restore. Deduplication dramatically reduces the amount of data sent and stored - eliminating backup bottlenecks and reducing storage costs.
Variable-length deduplication is a key feature in eliminating redundant data at a subfile level. This method of deduplication is more efficient that traditional fixed-length deduplication. With deduplication using fixed-length segments, even small changes to a dataset will trigger a backup of the entire file.
You can take advantage of a one-step recovery from image level backups. Instant access to VMs backed up to Data Domain further simplifies and optimizes the recovery of your VMs. With instant access, the VM is mounted on a Data Domain and vMotion orchestrates the recovery back to production storage. In addition, application consistency ensures you can protect your applications with no downtime.
Scalability and Reliability
When deploying Avamar with Data Domain as the backup target, you will reduce the costs involved with backing up and replicating data for disaster recovery. Data Domain Replicator software provides automated, policy-based, network-efficient, and encrypted replication for disaster recovery and multi-site data protection.
EMC Avamar Data Store combines EMC certified hardware and Avamar deduplication backup and recovery software in a fully integrated, scalable, pre-packaged solution. In addition, it eliminates single points of failure by employing patented redundant array of independent nodes (RAIN) technology to provide high availability across nodes in the Data Store. System and data integrity are verified daily to ensure recoverability.
Optimized Protection for Virtual Infrastructure
Avamar is optimized for virtualized environments, supporting guest and image-level backups of VMware® vSphere and Microsoft® Hyper-V. Avamar Virtual Edition (AVE) delivers a software-only data protection appliance, ideal for virtual environments.
Avamar takes advantage of VMware Changed Block Tracking (CBT) for both faster backups and restores. For image backup, Avamar maximizes throughput by using intelligent load balancing across multiple proxy VMs. Avamar provides fast, singlestep recovery of individual files or complete VM images to the original VM, an alternate VM or a new VM. For VM images stored on a Data Domain Systems, a VM can be instantly accessed, and while running be vMotioned back to the production environment.
Avamar has tight integration into VMware and enables self-service data protection. vAdmins run backups and recoveries without ever leaving vSphere. Avamar integration with vRealize Automation (vRA) and vCloud Director (vCD) provide data protection services for public cloud, private cloud, hybrid cloud and born-in-the-cloud. The vRA Data Protection Extension embeds data protection directly into the blueprints. These blueprints ensure that data protection is always applied during the VM provisioning process. In addition, vAdmins manage data protection from within the vRA UI. The vCD Data Protection Extension embeds backup services right into vCloud Director and can be shared and distributed in a multi-tenant model.
Avamar provides fast, efficient data protection of your Microsoft private and hosted clouds, including Hyper-V and Azure. It is simple to protect your mission critical applications by leveraging the interfaces that you already use when managing your applications. Application admins are empowered to centrally manage the data protection of their Microsoft applications. Backup administrators are responsible for assigning the appropriate data protection policies using Microsoft System Center Virtual Machine Manager. Policies are enforced when the virtual machines are provisioned.
Avamar will protect each VM via an image based backup method. By understanding the virtual hard disk format, the backup application will scan the VM files directly in the Hyper-V file system, processing the data more efficiently than an agent-based method. Cluster Shared Volumes (CSV) allows multiple nodes to have access to all disks within the clusters. With Avamar, you can designate multiple proxy node systems for your backup. This brings performance benefits by allowing any host within the cluster to perform a backup.
Highly Efficient Backup of NAS and High Density File Systems
Avamar provides fast, reliable NAS system backup and recovery via the Avamar NDMP Accelerator node. With this approach, a level-0 backup is performed only once, during the initial full backup. Subsequent daily full backups are achieved by requesting only level-1 incremental dumps, and building them into a daily full backup view. This dramatically reduces backup times and the impact on NAS resources, and allows an easier and faster recovery. Avamar eliminates backup bottlenecks and provides the freedom to consolidate storage and optimize NAS systems—without limiting the number and size of files or volumes—to meet the backup window. With automated multi-streaming, Avamar can protect large scale-out NAS systems, including EMC Isilon, by delivering increased throughput to protection storage.
Avamar’s Fast Incremental architecture provides an efficient solution to protect highdensity file systems (HDFS). The traditional file-based backup approach for protecting HDFS cause bottlenecks by scanning/reading the entire file system during a backup. Linux Fast Incremental is aware of changes made to a file system, eliminating the need to perform a file-scan during the backup and eliminating the bottlenecks of traditional file-based backups.
Fast Desktop/Laptop Backup
Avamar delivers efficient data protection for desktop/laptop by providing data deduplication, open-file backup, and CPU throttling. Avamar leverages existing network links, and since it operates in the background, it is not disruptive to endusers. Data is automatically backed up when a user is attached to the network during normal backup windows. Avamar enables self-service backup and recovery. End users can initiate an on-demand backup and quickly recover their own data anywhere, anytime, via an intuitive interface and integrated search engine. The recovery is always just one-step.
Avamar helps companies meet compliance regulations that require extended retention of data by sending backup data to a media access node, which then places the data on a VTL or tape. Data is stored in the original format maintaining all permissions and attributes, which supports offsite restores for eDiscovery.
Centralized Management and Contol
Backup and Recovery Manager provides control and monitoring for Avamar, NetWorker and Data Domain systems from your tablet. It requires no license and is installed by any customer leveraging the Data Protection Suite Family.
Flexible Deployment Options
Avamar provides flexibility in solution deployments depending upon your specific use case and recovery requirements.
EMC Avamar Virtual Edition (AVE) is the industry’s first deduplication virtual appliance for backup and recovery—consisting of customer installable EMC Avamar software deployed as a virtual appliance. AVE enables the deployment of a complete Avamar server on an existing VMware ESX server or Microsoft Hyper-V server. The AVE can scale up to 16 TB when configured with Data Domain Virtual Edition as the storage system. Since all aspects of the backup and recovery process are encapsulated and virtualized, control and management are streamlined, reducing demands on your IT staff.
Avamar Virtual Edition has the added benefit of cost-effective Avamar virtual-tovirtual, or Avamar virtual-to-physical server replication to meet your disaster recovery objectives.
Avamar lightweight software agents can be deployed on servers with no additional remote hardware required. This enables data within a remote office to be backed up directly over an existing WAN link to a Data Domain system or Avamar Data Store residing within the data center, eliminating the need for local tape backups and offsite tape shipment risks.
For mid-market environments, EMC Avamar Business Edition provides a competitively priced, conveniently sized, turnkey deduplicated backup solution.
- Fast, daily full backups using existing infrastructure and networks
- Variable-length deduplication for high performance and lower cost
- Simple, one-step recovery
- Intuitive centralized management and encryption for data security
- Integration with EMC Data Domain systems for enhanced scalability
- Reduces network bandwidth for backup up to 99%
- Reduces backup times up to 50%
- Global deduplication reduces total backup storage up to 30x
- 30x faster image restore compared to traditional backups
- Always a daily full backup in a fraction of the time
- Single-step recovery from image backups
- GLR of Microsoft Exchange and SharePoint backups
- Complete integration with Data Domain Systems for optimal protection storage
- Data is deduplicated at the client, compressed and encrypted before transfer across the network
|Deduplicated Capacity||Up to 124 TB using Avamar Deduplication Backup System
Up to 570 TB using Data Domain Deduplication Backup System
|Solution Size (Users)||500 to 1,000 users|
|Cooling Requirements (Max)||17440.0 BTU/hr|
|Power Dissipation (Max)||5143.0 W|
|Backup Applications||EMC Avamar
|Backup-to-Disk Platforms||EMC Data Domain Systems
EMC Avamar Data Store
|Database Platforms||IBM DB2
IBM Domino (Lotus)
Microsoft Exchange Server
Microsoft SQL Server
|Supported Operating Systems||Apple OS X
Novell Netware, OES 2, OES SP2
Red Hat Linux
|Virtualization Support||Microsoft Hyper-V
|Solution For||Data Protection
Backup and Disaster Recovery
Download the Avamar Datasheet (PDF).
