Overview:

The Dell PowerEdge XR5610 is a high-performance server designed and optimized for edge use cases like

Telco/5G, vRAN, ORAN
Retail and Manufacturing
Video Monotoring
IoT Device Aggregation
Military and Defense

The Dell PowerEdge XR5610 is a powerful short-depth 1U server that is purpose-built for the edge. XR5610 is the upgraded successor to the popular XR11 and features generational enhancements that are designed to deliver high-performance compute and ruggedized deployment capability in a 463mm chassis. Well suited for 5G vRAN and ORAN telecom workloads, as well as military and defense deployments and retail AI including video monitoring, IoT device aggregation and PoS analytics.

All-Purpose 1U Featuring Latest Tech

High performance 1U designed for a variety of demanding workloads including Telecom, Retail, and Military
One Intel® Xeon Scalable Processor with vRAN Boost supporting up to 32 cores for ultimate edge performance
Up to 8 DDR5 DIMMs 4800MT/s for 50% increase from previous generation in memory bandwidth

Excels with a Variety of Demanding Edge Workloads

Excels in telecom deployments such as vRAN, ORAN, and others by offering PTP, SyncE via add-in NICs, Intel CPUs with vRAN Boost® featuring Integrated FEC, and NEBS Level 3 (SR3580) testing
Designed to support retail and manufacturing applications, including video monitoring, PoS analytics, and IoT device aggregation and analytics
Field ready for military and defense applications including remote support for field operations and reconnaissance, MIL tested

Purpose-built for the Edge

Built rugged to operate in temperatures from -5C to 55C; MIL 810H and NEBS Level 3 (SR3580) tested
Offers easy serviceability with reverse I/O & power
Short-depth chassis to fit in space constrained environments
Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Sustainability

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.

Rest easier with Dell Technologies Services

Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 locations and backed by our 60K+employees and partners.

Features:

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Bringing enterprise-class compute to the edge

Powered by a 4th generation Intel Xeon Scalable processor, experience a short-depth, all-purpose server that enables scalability, rated to MIL 810H and NEBS Level 3, that operates between -5C° and 55C°.

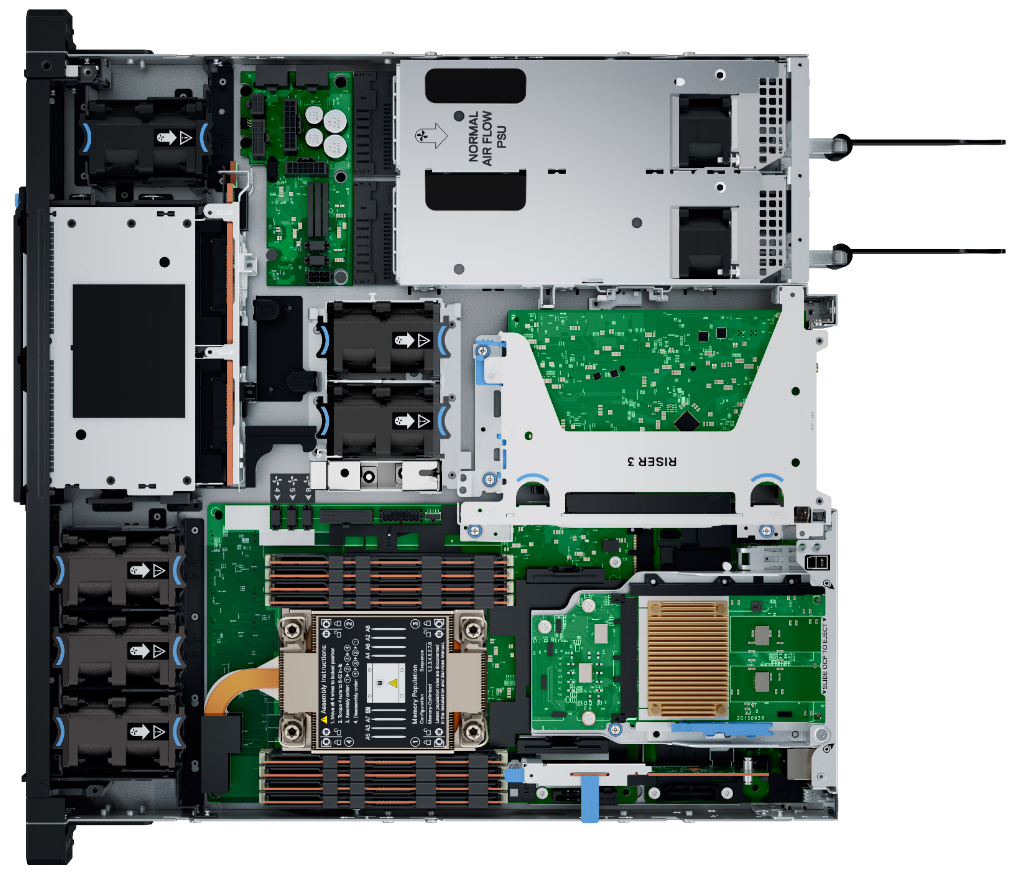

PowerEdge XE8640 Internal

Built so you can scale seamlessly

Deploy and enable HPC applications and AI workloads across your business.

Scale effectively with up to 8 DDR5 memory DIMM slots, up to four drives, up to 2 PCIe Gen5 expansion slots and one OCP 3.0 slot
Deploy AI operations with confidence thanks to built-in security features including Secured Component Verification and Silicon Root of Trust

Purpose-built for demanding vRAN and other edge deployments

Get a high-performance 1U in a rugged short-depth and purpose-built machine.

Designed for a variety of demanding workloads including telecom, retail, manufacturing and military
One Intel Xeon Scalable Processor supporting up to 32 MCC cores for ultimate edge performance
Up to 8 DDR5 DIMMs 4800MT/s for a 50% increase from previous generation in memory bandwidth

Systems Management and Security Solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent Automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Technical Specifications:

Dell PowerEdge XR5610 Specifications
Processors	One 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	8 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only
Storage controllers	Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs External HBA (non-RAID): HBA355e Software RAID: S160
Drive bays	Front bays: Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs max 30.72 TB
Hot Swap Redundant Power Supplies	1800 W Titanium 200—240 VAC or 240 HVDC 1400 W Platinum 100—240 VAC or 240 HVDC 1100 W Titanium 100—240 VAC or 240 HVDC 1100 W -48 — (-60) VDC 800 W Platinum 100—240 VAC or 240 HVD 800 W -48 — (-60) VDC
Cooling options	Air cooling
Fans	6 Standard cold swap fans
Dimension	Rear Accessed configuration Height: 42.8 mm (1.68 inches) Width: 482.6 mm (19 inches) Depth: 400 mm (15.74 inches) ear to rear wall 487.7 mm (19.20 inches) with bezel 463 mm (18.22 inches) without bezel Weight: 11.27 mm (24.84 pounds) Front Accessed configuration Height: 42.8 mm (1.68 inches) Width: 482.6 mm (19 inches) Depth: 400 mm (15.74 inches) ear to rear wall 566.05 mm (22.28 inches) with bezel 472.7 mm (18.61 inches) without bezel Weight: 11.37 mm (25.06 pounds)
Form Factor	1U rack server
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module

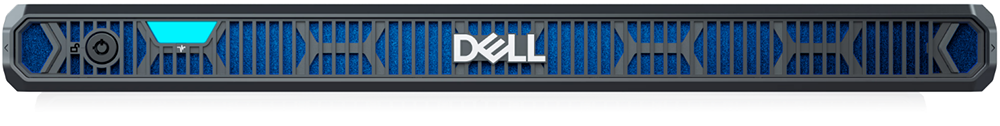

Bezel	Optional bezel or security bezel with dust filter
OpenManage Software	CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	4 x 25 GbE SFP+ LOM
Network options	1 x OCP card 3.0 (optional)

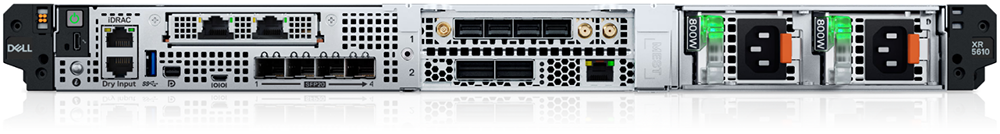

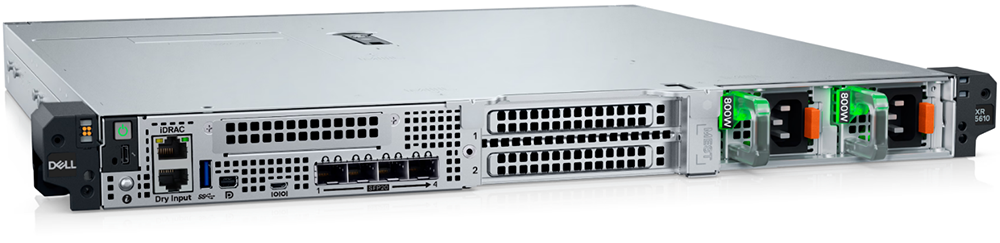

Ports	For Rear Accessed configuration Front Ports: 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 Rear Ports: 1 x iDRAC dedicated port 1 x USB 3.0 1 x Serial (MicroAB USB 2.0) port 1 x Mini-DisplayPort 1 x RJ45 for dry contact 4 x 25 GbE SFP+ LOM For Front Accessed configuration Front Ports 1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port 1 x Mini-DisplayPort, 4 x 25 GbE SFP+ LOM, 1 x RJ45 for dry contact Rear Ports N/A
PCIe	1 CPU configuration: Up to 2 PCIe slots (2 x16 Gen5)
GPU	Up to 2 x 75 W GPUs (single-width, full-height, half-length)
Operating Systems & Hypervisors	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
OEM-ready version availabe	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.

Documentation:

Dell PowerEdge XR5610 Datasheet (.PDF)

Dell PowerEdge XR5610
All-purpose short-depth 1U server for Telecom, Defense, Retail, and other demanding edge deployments
