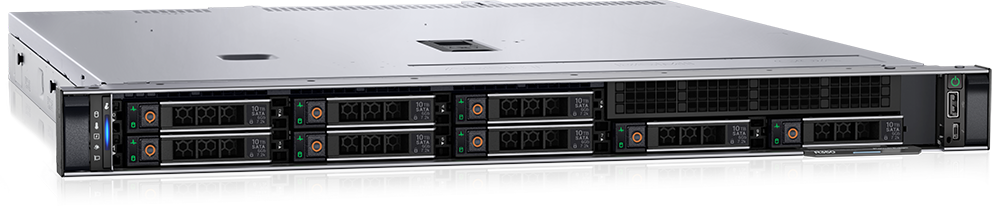

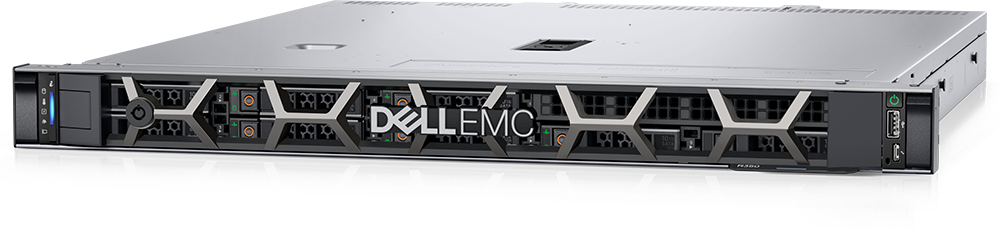

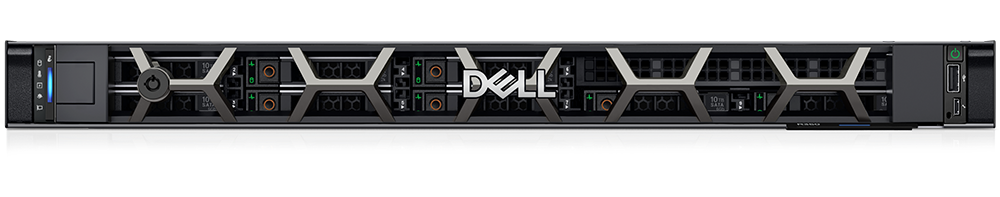

Dell EMC PowerEdge R350
Deliver powerful compute with a single processor server

Overview:

The Dell EMC PowerEdge R350 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features.

Your Innovation Engine for businesses of all sizes

The Dell EMC PowerEdge R350, powered by Intel Xeon E-2300 processors, delivers increased performance and is designed for productivity and data intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R350 supports PCIe Gen 4 and offers enhanced efficiency to support increasing power and thermal requirements. This makes the PowerEdge R350 a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-ofsale transactions and enterprise level requirements for data analysis and virtualization.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge R350 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

• Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
• Maintain server firmware safety with digitally signed firmware packages
• Prevent unauthorized configuration or firmware change with system lockdown
• Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Features:

Your Innovation Engine for businesses of all sizes

The PowerEdge R350, powered by a Intel® Xeon E-2300 processor, delivers increased performance and is designed for productivity and data intensive applications.

Maximize performance and adapt to meet future growing demands.

The PowerEdge R350 is an affordable easy to manage one-socket rack server designed to accelerate business growth for organizations looking for enterprise class features.

• Delivers high availability features such as hot-plug redundant power supplies, hot-plug BOSS and hot-plug HDD/SSD
• Supports up to 32GB DIMMS at 3200 MT/s DIMM speed, up to 128GB
• Address substantial throughput improvements with PCIe Gen 4 support
• Provides improved security and faster boot time with UEFI Secure Boot
• Ideal for file/print, mail/messaging, point of sale, web hosting, and collaboration

Systems Management and Security Solutions

Technical Specifications:

Dell EMC PowerEdge R350 Specifications
Processors	One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Memory	Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only Note: For Pentium processor, the maximum memory speed is 2666 MT/s.
Storage controllers	Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e
Drive bays	Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Power supplies	600W Platinum 100-240 VAC or 240 VDC redundant, hot swap
Cooling options	Air cooling
Fans	Up to four cabled fans
Dimension	Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Depth – 585.3 mm (23.04 inches) without bezel and 598.94 mm (23.58 inches) with bezel
Form Factor	1U rack server
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module
Bezel	Optional bezel or security bezel
OpenManage Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional
Embedded NIC	2 x 1 GbE LOM
Network Options	NA

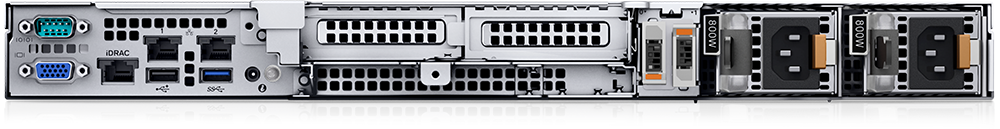

Ports	Front Ports 1 x USB 2.0 1 x iDRAC Direct (Micro-AB USB) port Internal Ports 1 x USB 3.0 (optional) Rear Ports 1 x USB 2.0 1 x iDRAC ethernet port 1 x USB 3.0 1 x VGA 1 x Serial port
PCIe	3 PCIe slots: 1x8 Gen4 (x16 connector) low profile, half length 1x8 Gen4 (x8 connector) low profile, half length 1x4 Gen4 (x8 connector) for dedicated PERC only
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
OEM-ready version availabe	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Documentation:

Dell EMC PowerEdge R350 Datasheet (.PDF)
