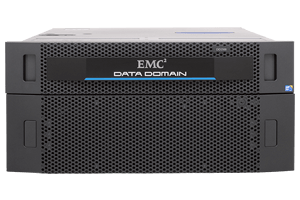

Data Domain DD2500
Powering EMC Protection Storage

Overview:

Gain industry-leading performance, efficiency, and reliability in your backup, archive, and disaster recovery environment with EMC Data Domain DD2500 protection storage appliance. Ideal for your small to midrange data center.

Achieve up to 30:1 data reduction with deduplication that writes only unique segments of data to disk. You’ll eliminate redundancy, shrink backup times, and mitigate risk of losing data. These advantages make the DD2500 a compelling alternative to traditional tape libraries.

Like all EMC Data Domain systems, the DD2500 integrates with many leading backup, archiving, and enterprise applications. So deployment is easy and quick.

The Data Domain Data Invulnerability Architecture keeps your data correct and recoverable. End-to-end data verification and self-healing ensures you can access your data when you need it.

Key Features:

• Scales from 11.4 TB to 133 TB of usable capacity
• Provides up to 13.4 TB/hour throughput
• Eliminates risks associated with traditional tape backup, including failed backups and lost tapes
• Protects data integrity and recoverability with the EMC Data Domain Data Invulnerability Architecture
• Data Domain works with backup and archive applications you already have

Software Essentials:

DD Boost

• Advanced integration with leading backup and enterprise applications
• Speeds backups up to 50%

DD Boost for Enterprise Apps

• Control backup directly from native applications

DD Cloud Tier

• Simple and efficient long-term retention to a public, private or hybrid cloud

DD Encryption

• Encrypts data-at-rest

DD Extended Retention

• Provides cost-effective, longterm retention of backups

DD Replicator

• Reduce bandwidth requirements by up to 99%
• Replicate from up to 540 remote sites into a single system

DD Retention Lock

• Secure retention of archive data
• Meets governance and compliance requirements included SEC 17a-4(f)

DD Virtual Tape Library

• Supports open systems and IBM I Fibre Channel environments

DD Management Center

• Centralized management for larger environments

Hardware Essentials:

High-Speed, Scalable Deduplication

• Up to 58.7 TB/hr performance
• Reduces requirements for backup storage by 10 to 30x and archive storage by up to 5x
• CPU-centric scalability

Data Invulnerability Architecture

• Inline write/read verification, continuous fault detection
• Dual disk parity RAID 6

Seamless Integration

• Supports leading enterprise backup and archive applications

Backup and Archive Consolidation

• Efficiently protect backup and/or archive data
• Meets governance policies and compliance regulations for archive data

Cloud-Enabled

• Simple and efficient long-term retention to a public, private or hybrid cloud
• Secure multi-tenancy provides logical isolation of user data

Fast and Efficient Disaster Recovery

• Reduce bandwidth requirements by up to 99%

Operational Simplicity

• Lower administrative costs
• Reduced footprint DD VE
• Software-defined protection storage
• ROBO & Entry use cases

EMC Data Domain Software:

EMC Data Domain Boost

Advanced Application Integration

EMC Data Domain Boost™ software provides advanced integration between leading backup and enterprise applications and Data Domain systems. With DD Boost, parts of the deduplication process are distributed to the backup server or application server, enabling client-side deduplication so only unique data segments are sent to the Data Domain system. This enables 50% faster backups and reduces network bandwidth requirements by 80 to 99%. DD Boost provides advanced load balancing and failover, which further improves throughput and resiliency. In addition, Data Domain systems can grant secure access to multiple DD Boost users per system for data protection-as- a-service in private and public cloud deployments. Providing DD Boost users secure access to their data lays the foundation for logical data isolation enabling secure multi- tenancy on a Data Domain system in DD Boost environments.

DD Boost also enables backup administrators to control replication between Data Domain systems providing administrators a single point of management for all backup copies. This also provides more flexible retention management by enabling backup administrators to set retention periods for each backup copy individually.

EMC Data Domain Boost For Enterprise Applications

Application Owner Control

DD Boost for Enterprise Applications leverages DD Boost technology for client-side deduplication to deliver 50% faster backups. DD Boost for Enterprise Apps also integrates directly with Oracle RMAN, Microsoft SQL Server, IBM DB2, SAP, and SAP HANA. So, application owners and database administrators have control and visibility of backup directly from their native application utility to a Data Domain system. This empowers applications owners with the control they desire to eliminate silos of storage for application protection.

EMC Data Domain Cloud Tier

Cost-effective Long-term Retention To Cloud

EMC Data Domain Cloud Tier provides best of breed technology that will allow businesses to gain the advantages of cloud while lowering overall TCO. With DD Cloud Tier, data is natively tiered to the public, private or hybrid cloud for longterm retention. Only unique data is sent directly from Data Domain to the cloud and data lands on the cloud object storage already deduplicated. With deuplication ratios of 10 – 30x, storage footprint is greatly reduced for costeffective long-term retention in the cloud. DD Cloud Tier can scale up to 2x the max capacity of the active tier enabling up to 51 PB of logical capacity to be protection in the cloud. With DD Encryption, data in the cloud remains secure. A broad ecosystem of backup and enterprise applications and a variety of public and private clouds are supported with DD Cloud Tier including EMC Elastic Cloud Storage (ECS) and Virtustream Storage Cloud.

EMC Data Domain Encryption

Secure Encryption Of Data-at-rest

EMC Data Domain Encryption software enhances security for data that resides on Data Domain systems using industry-standard RSA® BSAFE FIPS 140-2 validated cryptographic libraries. With DD Encryption, backup and archive data is stored on a Data Domain system with encryption and compression performed inline—before the data is written to disk. DD Encryption supports internal encryption key management on each Data Domain system or external key management through RSA Data Protection Manager, which delivers a robust encryption key lifecycle management solution for the entire enterprise.

EMC Data Domain Extended Retention

Long-term Retention Of Backup Data

EMC Data Domain Extended Retention software provides internal tiering for costeffective, long-term retention of backup data on a Data Domain system to minimize reliance on tape. DD Extended Retention software provides a transparent separation of backup data with short-term and long-term retention requirements by storing it in different tiers on Data Domain systems – the active and retention tier. Long-term data access and recoverability is ensured through fault isolation. Specifically, when the retention tier reaches full capacity it will be sealed and becomes a self-contained unit to ensure long-term data preservation. As a result, in the event of a failure or catastrophe, the system continues to operate with all unaffected components.

EMC Data Domain Replicator

Network-efficient Replication

EMC Data Domain Replicator software provides automated, policy-based, network- efficient and encrypted replication for disaster recovery and multi-site backup and archive consolidation. DD Replicator software asynchronously replicates only compressed, deduplicated data over the WAN. Cross-site deduplication further reduces bandwidth requirements when multiple sites are replicating to the same destination system. With cross-site deduplication, any redundant segment previously transferred by any other site or as a result of a local backup or archive will not be replicated again. This improves network efficiency across all sites and reduces daily network bandwidth requirements up to 99% making network-based replication fast, reliable and cost- effective. In order to meet a broad set of DR requirements, DD Replicator provides flexible replication topologies, such as full system mirroring, bi-directional, many-to- one, one-to-many, and cascaded. In addition, customers can choose to replicate either all or a subset of the data on the Data Domain system. For the highest level of security, DD Replicator can encrypt data being replicated between Data Domain systems using the standard Secure Socket Layer (SSL) protocol.

DD Replicator scales performance and supported fan-in ratios to support large enterprise environments. When deployed over a 10Gb network, DD Replicator can mirror data between two systems at up to 58.7 TB/hr. In addition, DD Replicator enables up to 540 remote systems to replicate into a single DD990 system, which simplifies the administration and reduces the costs of providing disaster recovery for remote sites.

EMC Data Domain Retention Lock

Retention Of Archive Data For Governance And Compliance

EMC Data Domain Retention Lock software enables IT organizations to efficiently store and manage retention of archive data for both governance and compliance on a single Data Domain system. DD Retention Lock ensures that archive data stored on a Data Domain system meets secure data retention requirements driven by either governance policies or by strict regulatory compliance standards such as SEC 17a-4(f). In addition, DD Retention Lock enables secure file locking of archive data at an individual file level; enabling these files to be intermixed with unlocked files on the same Data Domain system – thereby allowing for a broader consolidation of backup and retention based archive data. Litigation hold protects compliance archive data under legal discovery through the ability to enforce new retention periods on a Data Domain system, preventing deletions or modifications to the archive data during the course of legal action. By leveraging industrystandard protocols (such as NFS and CIFS) for time- based retention of files, DD Retention Lock seamlessly integrates with industry-leading archive applications including EMC SourceOne and Symantec Enterprise Vault, providing users an endto-end archiving solution.

EMC Data Domain Virtual Tape Library

Inline Deduplication For SAN Environments

EMC Data Domain Virtual Tape Library software improves backup efficiency by eliminating the challenges of physical tape by enabling all Data Domain systems to emulate multiple tape devices over a Fibre Channel interface. Data Domain VTL software can emulate up to 64 virtual tape libraries with up to 540 virtual tape drives, supporting up to LTO-5 tape drives. DD VTL software provides up to 64,000 virtual slots and an unlimited number of virtual tape cartridges, with the ability to dynamically change the number of virtual slots and cartridge access ports. Data Domain VTL software is qualified with leading open systems and IBM i enterprise backup applications, and easily integrates into existing Fibre Channel SAN backup environments.

EMC Data Domain Management Center

Centralized Management For Large Environments

EMC Data Domain Management Center is a scalable virtual appliance that streamlines management and reporting in large Data Domain environments, enabling aggregate management of multiple systems through a single interface. Customizable dashboards provide visibility into aggregate status and the ability to drill-down to system-level details. Role based access allows different levels of access via assigned user roles for various levels of expertise within the organization

EMC Data Domain Operating System:

Powering EMC Protection Storage

The Data Domain Operating System (DD OS) is the intelligence that powers EMC Data Domain. It provides the agility, security and reliability that enables the Data Domain platform to deliver scalable, high-speed, and cloud-enabled protection storage for backup, archive and disaster recovery.

High-speed Scalable Deduplication

The Data Domain Operating System powers Data Domain to deliver industry- leading speed and efficiency with throughput up to 58.7 TB/hour, enabling more backups to complete sooner and reducing pressure on backup windows. DD OS employs variablelength deduplication to minimize disk requirements and ensure data lands on disk already deduplicated. This reduces backup and archive storage requirements by an average of 10 to 30x, making disk a cost-effective alternative to tape. Data on disk is available online and onsite for longer retention periods and restores and retrievals become fast and reliable. This efficiency enables Data Domain to protect up to 86.4 PB of data on a single system. With deduplication, months of retention on disk is possible using the same number of “floor tiles” that traditionally provided only a couple of days of disk staging.

EMC Data Domain Operating System powers EMC Data Domain to deduplicate data during either the backup process or archive process, which maximizes performance while minimizing disk storage requirements. Deduplicated data can be stored onsite for immediate restores and longerterm retention on disk. The deduplicated data can also be replicated over the WAN to a remote site or a service provider site in the cloud for disaster recovery operations, eliminating the need for tape-based backups, or for consolidating tape backups to a central location. Data Domain provides the capability to consolidate both backup and archive data on the same infrastructure allowing greater consolidation by eliminating silos of backup and archive storage and associated overhead.

The key that enables DD OS to provide industry-leading performance while minimizing disk requirements is the EMC Data Domain Stream-Informed Segment Layout (SISLTM) scaling architecture. Specifically, SISL leverages the continued advancement of CPU performance to continuously increase Data Domain system performance by minimizing disk accesses required to deduplicate data. SISL deduplicates data by identifying duplicate data segments in memory, which minimizes disk usage. This enables Data Domain throughput to be CPU-centric, not “spindle bound.”

Data Invulnerability Architecture

Data Domain is designed as the storage of last resort – built to ensure you can reliably recover your data with confidence. The EMC Data Domain Data Invulnerability Architecture is built into DD OS to provide the industry’s best defense against data integrity issues. Inline write and read verification protects against and automatically recovers from data integrity issues during data ingest and retrieval.

Capturing and correcting I/O errors inline during the backup process eliminates the need to repeat backup jobs, ensuring backups complete on time and satisfy servicelevel agreements. In addition, unlike other enterprise arrays or file systems, continuous fault detection and self-healing ensures data remains recoverable throughout its lifecycle on Data Domain.

End-to-end data verification reads data after it is written and compares it to what was sent to disk, proving that it is reachable through the file system to disk and that the data is not corrupted. Specifically, when the Data Domain Operating System receives a write request from backup software, it computes a checksum over the data. After analyzing the data for redundancy, it stores the new data segments and all of the checksums. After all the data is written to disk, the Data Domain Operating System verifies that it can read the entire file from the disk platter and through the Data Domain, and that the checksums of the data read back match the checksums of the written data. This confirms the data is correct and recoverable from every level of the system.

Performance and Capacity

	DD VE*	DD2200	DD2500	DD4200	DD4500	DD7200	DD9500
Maximum Throughput	1.85 TB/hr	3.8 TB/hr	5.6 TB/hr	10.6 TB/hr	10.6 TB/hr	12.6 TB/hr	27.7 TB/hr
Maximum Throughput (DD Boost)	4.2 TB/hr	4.7 TB/hr	13.4 TB/hr	25.6 TB/hr	25.6 TB/hr	28.3 TB/hr	58.7 TB/hr
Logical Capacity	Up to 800 TB	40 - 860 TB	1.3 - 6.6 PB	1.8 - 9.4 PB	2.8 - 14.2 PB	4.2 -21.4 PB	8.6 - 43.2 PB
Logical Capacity w/ DD Extended Retention	-	-	-	3.7 – 18.9 PB	5.7 – 28.5 PB	8.5 – 42.8 PB	17.2-86.4 PB

Seamless Integration

Data Domain integrates easily with existing infrastructures and can be used seamlessly with leading backup and archiving applications. Integrating a Data Domain system into your environment does not require any change in process or infrastructure, so you can realize the value of deduplication quickly and efficiently. In addition, Data Domain can integrate directly with leading enterprise applications such as Oracle RMAN or write directly over CIFS or NFS to support a variety of workloads

Since Data Domain simultaneously support multiple access methods including NFS, CIFS, VTL, NDMP and EMC Data Domain BoostTM all applications and utilities can be supported in the same Data Domain system at the same time to enable greater protection storage consolidation. A system can present itself as a file server, offering NFS, CIFS access over Ethernet; as a virtual tape library (VTL) over Fibre Channel; as an NDMP tape server over Ethernet; or as a disk target using application specific interfaces like Data Domain Boost.

Backup And Archive Consolidation

The flexibility of DD OS enables Data Domain to be the only protection storage to simultaneously support backup and archive data. This enables Data Domain to reduce overall total cost of ownership (TCO) by sharing resources across backup and archive data. Specifically, a single Data Domain can be used for backup and recovery of the entire enterprise (including Oracle, SAP, Microsoft, and VMware®, as well as IBM i and mainframe environments) as well as protecting archive data (including file, email, enterprise content management, database and Virtual Machine archiving). Data Domain cost-effectively protects archive data through integration with industryleading archiving applications including EMC SourceOne and Symantec Enterprise Vault. By consolidating to a common protection storage platform, you can eliminate silos of storage and associated overhead - including management, floor space, power and cooling. In addition, with EMC Data Domain Retention Lock software, Data Domain systems can meet internal governance policies or compliance regulations for archive data including SEC 17a-4(f).

Cloud-enabled

With Data Domain Cloud Tier, DD OS can natively tier data to a public, private or hybrid cloud for long-term retention. Only unique data is sent directly from Data Domain to the cloud and data lands on the cloud object storage already deduplicated. With deduplication ratios of 10 – 30x, storage footprint is greatly reduced lowering overall TCO. DD Cloud Tier can scale up to 2x the max capacity of the active tier enabling up to 51 PB of logical capacity to be protection in the cloud. With DD Encryption, data in the cloud remains secure. A broad ecosystem of backup and enterprise applications and a variety of public and private clouds are supported with DD Cloud Tier including EMC Elastic Cloud Storage (ECS) and Virtustream Storage Cloud.

DD OS also provides secure multi-tenancy, which enables large enterprises and service providers to deliver data protection as a service with Data Domain in a private or hybrid cloud. With secure multi-tenancy, Data Domain will logically isolate tenant data, ensuring that each tenant’s data is only visible and accessible to them. Secure multi-tenancy allows for tenant self-service by allowing tenants visibility only to the resources they are privileged to and catering to their needs for monitoring their resources. Physical capacity measurement allows you to capture how much physical capacity is being consumed at a file, directory, MTree, tenant, or tenant-unit level. This serves as an effective mechanism for managing shared Data Domain protection storage capacity between individual departments or tenants.

Fast, Efficient And Scalable Disaster Recovery

As data lands on Data Domain, it can immediately begin replicating it to a disaster recovery site. To meet strict DR requirements, EMC Data Domain Replicator software can replicate at 52 TB/hr over a 10 Gb network connection. DD OS replicates only unique compressed data across the network, requiring a fraction of the time, bandwidth and cost of traditional replication methods. With cross-site deduplication only unique data is transferred across any of the WAN segments. This can reduce WAN bandwidth requirements up to 99%, making network-based replication fast, reliable and cost-effective. For the highest level of security, data being replicated between Data Domain instances can be encrypted using the standard Secure Socket Layer (SSL) protocol. Data Domain provides flexible replication topologies including full system mirroring, bi-directional, many-to-one, one-to-many, and cascaded. In a many- to-one deployment, data from up to 540 remote offices can be replicated to a single DD9500.

Operational Simplicity

Data Domain is very simple to install and manage resulting in lower administrative and operational costs. Administrators can access the Data Domain Operating System through command line over SSH or through EMC Data Domain System Manager, a browser-based graphical user interface. Initial configuration and updates can easily be made for multiple Data Domain systems, along with the monitoring of system states and operations. Simple scriptability as well as SNMP monitoring provides additional management flexibility.

In addition, Data Domain has an automatic call-home system reporting called autosupports, which provides email notification of complete system status to EMC support and a selected list of administrators. This non-intrusive alerting and data collection capability enables proactive support and service without administrator intervention, further simplifying ongoing management.

Data Domain Virtual Edition

Data Domain Virtual Edition (DD VE) leverages the power of DD OS to deliver software-defined protection storage. DD VE is fast and simple to download, deploy and configure - and can be up and running in minutes. DD VE runs in VMware on vSphere ESXi 5.1, 5.5 and 6.0 and can run on standard hardware. So existing infrastructure can be utilized to deploy virtual protection storage. An assessment tool can be run during deployment to check the underlying infrastructure and ensure it meets recommended requirements. A single DD VE instance can scale from .5 TB to 16 TBs. Capacity can be easily be moved between virtual systems and/or locations and can be purchased in 1 TB increments allowing you to grow capacity as the business demands it. DD VE maintains the core DD OS features and includes DD Boost, DD Encryption and DD Replicator. Configure and manage a DD VE instance using DD System Manager and centrally manage multiple DD VE instances through DD Management Center.

Specifications:

DD2500 Specifications
Drive Type	SAS
Max Throughput	13.4 TB/hr
Max Throughput (without DD Boost)	5.6 TB/hr
Logical Capacity	Up to 6.6 PB
Max Usable Capacity	133.0 TB
Product	Data Domain Products
Solution For	Archiving Data Protection Backup and Disaster Recovery Mid-Range Storage
Browse By	Backup Storage

Documentation:

Download the Data Domain DD2500 Hardware Datasheet (PDF).

Download the Data Domain DD2500 Software Datasheet (PDF).
