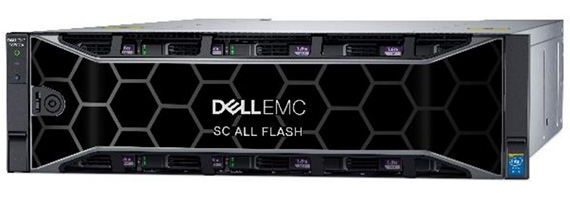

Dell EMC SC7020F All-Flash Storage Array
Smart AFA choice for modern workloads
Sorry, this product is no longer available, please contact us for a replacement.
Take the inside track to great storage with two SC All-Flash base array options. Both models feature a 3U “all-in-one” format, including active/active dual controllers with 8-core Intel Xeon processors, up to 256GB memory and multi-protocol flexibility with 32Gb FC, 16Gb FC, 10Gb iSCSI and new 100Gb and 25Gb iSCSI I/O options. 5 With SC All-Flash, your infrastructure will be ready for tomorrow’s network speeds!
Welcome to a better flash architecture
Bring the power and speed of Dell EMC all-flash storage to bear on your toughest business challenges. Whether your goals include general-purpose workload consolidation, a new VDI deployment, high-volume OLTP systems or an allflash private cloud, SC All-Flash storage delivers modern SSD performance with simplicity, flexibility and value. Why compromise with less complete solutions? These arrays have everything you need to get started with all-flash faster – and see all-flash results sooner.
End-to-end flash helps you do things you thought were impossible, taking your business to new levels of productivity and success. SC All-Flash’s active/active, performance-centric design keeps IOPS and throughput high as you scale up and out, while ensuring every dollar you spend is targeted directly on application acceleration.
Purpose-built to adapt to constant change and growth, SC All-Flash boosts workloads without interruption, even as environments evolve unpredictably. The days of saying “no” to business opportunity because of rigid storage infrastructures are over. You now have unprecedented flexibility to test new ideas and shift strategies on the fly, helping your data center become a key competitive enabler for your company.
Efficiency and value
Automate your cost savings with innovative self-optimization features, including Intelligent Deduplication and Compression. Pervasive “thin methods” and intuitive management tools maximize and extend critical resources – and best of all, the entire suite of advanced SC Series software features is enabled by default. No extra licenses to buy or maintain!
Fully mobilize your data
Everything about SC All-Flash is fast (over 1 million max IOPS fast1 ) – but IOPS-crunching performance is just the beginning. These dependable arrays also provide deployment velocity and configuration agility to help your business compete in today’s dynamic markets. The enterprise-proven SC Operating System automates and manages the most time-consuming, error-prone aspects of change, including server/LUN mappings, allowing you to freely migrate, rebalance and consolidate data without interrupting workloads or reconfiguring hosts.
FEDERATE the combined performance and capacity of up to 10 arrays
Thanks to their built-in “storage hypervisor” capability, multiple SC All-Flash arrays can be grouped in federated systems under unified management. Data mobility within a federation is easy and transparent to hosts. Need to move a volume to another array? Live Migrate makes it click-simple, keeping workloads online and preserving snapshot and replication relationships throughout the move. Included Volume Advisor even offers ongoing load balancing guidance, suggesting the best initial data locations, then alerting you with optimization recommendations as time goes by.
Always available storage
Included Live Volume also keeps workloads running during unexpected outages and disasters. Non-disruptive autofailover between fully-synchronized volumes on local and remote arrays protects your vital business operations with no need for extra hardware or software purchases. Live Volume helps you achieve ZERO RTO/RPO, and even autorepairs your high-availability environment when a downed array comes back online.
Change storage configurations quickly without impacting your workloads. Federated architecture with built-in auto-failover makes SC All-Flash the smart choice to deliver consistent value in volatile business environments.
Aggressive cost savings
Despite these advanced capabilities, SC All-Flash arrays are remarkably affordable – and they don’t wait around for you to figure out how to reduce lifecycle expense. Proactive self-optimization features such as Intelligent Deduplication and Compression, RAID tiering, and a host of others work constantly in the background to auto-tune your environment to respond to real-world usage patterns. Data is placed, migrated and space-reduced at just the right time to maximize cost savings while minimizing performance impact – yet you always maintain policy-based, system-wide control.
Federate the performance and capacity of up to 10 arrays
Built-in “storage hypervisor” lets you move workloads seamlessly between arrays, making storage changes without impacting hosts. The enterprise-proven SC Operating System automates and manages time-consuming, error-prone management tasks, including server/LUN mappings and RAID provisioning. Increase both deployment velocity and configuration agility to help your business compete in today’s volatile markets.
All-Flash value – everything’s included!
Exclusively with SC All-Flash, every advanced feature in the SC Series line-up is enabled at no extra cost, making this the most value-intensive SC product ever. All features are licensed to the full capacity of the array. Key items include:
- Powerful management tools – New Unisphere HTML5 Web UI lets you configure SC All-Flash quickly with no software installation required. Just point your browser from any mobile device to accomplish most day-today tasks. Popular DSM (Dell Storage Manager) client application is still available for advanced management.
- CloudIQ – Free cloud-based SaaS (Software as a Service) suite provides predictive analytics, categorized alerts, remediation recommendations and a convenient dashboard to monitor the health of your SC environment.
- Intelligent Deduplication & Compression – Low-impact data reduction reduces raw capacity needs.
- Live Migrate Federation – Simplify multi-array environments with quick and seamless data movement among SC All-Flash arrays, or in heterogeneous environments with other SC Series hybrid arrays.
- Live Volume – Auto-failover between fully synchronized volumes on local and remote arrays.
- Volume Advisor – Monitors federation in background, makes proactive policy-based data placement recommendations.
- Data Progression – Achieve IOPS goals with the least expensive mix of storage media.
- RAID tiering – Eliminates manual provisioning. RAID levels change dynamically to optimize for reads/writes separately. Provides great performance at low cost.
- Dynamic Capacity – Pervasive “thin methods” allocate capacity exclusively on demand.
- Thin snapshots – Records changes only, preserved automatically when you move data within a federation.
- Thin clones – Create virtually unlimited volume copies for VDI or Test/Dev, without consuming additional space.
- Replication – Single-hop, multi-hop (chained), 1-to-many mixed topology. Works with all SC arrays.
- Remote Instant Replay – Sync/async replication across IP networks, deduped for efficiency.
- Multi-protocol network support – Flexible Fibre Channel and iSCSI connections, up to 29,000 MB/s bandwidth.
- Native application recovery tools – Replay Manager ensures reliable application consistent snapshots of Microsoft Volume Shadow Copy (VSS) enabled applications (Exchange, SQL Server and Hyper-V) and VMware virtual machines (VMs). Recover more quickly from farther back in time, with lower risk of human error.
- Encryption – Optional FIPS 140-2 certified self-encrypting drives (SEDs), auto-lock on power down or removal.
- Integration with PS Series (EqualLogic) arrays – Unified management and cross-platform replication lets you combine two platforms in a single solution.
- Chargeback – Simplifies budgeting by calculating storage costs for individual applications and departments.
- Multi-VLAN tagging – Provides segmented, controlled access for up to 64 VLANs per port, great for service providers, large corporations and others with multi-tenancy needs.
- Quality of Service (QoS) – Prioritize storage resources to match your business goals, eliminate “noisy neighbour” problems. User defined alerts, scriptable via REST.
- VVOLs support – Apply advanced SC array services to individual VMs using familiar vSphere tools.
Trusted, enterprise-class solution
And of course SC All-Flash is backed by the #1 market leader in all-flash arrays, and the #1 leader in storage overall.2 Dell EMC products are ubiquitous in data centers around the world -- and you get the benefit of all that technology and business expertise!
- World-class services options – Choose from a range of comprehensive deployment and support options, including ProSupport, ProDeploy, and new Optimize Services.3 Our renowned team can reduce deployment costs, accelerate time to completion, and even monitor your environment to fix problems before they occur.
- Dell EMC hardware/software support – SC All-Flash supports popular Dell EMC products including PowerPath, ViPR, VPLEX, AppSync, RecoverPoint, Connectrix, Data Domain and more.
- Broad 3rd-party integration – Dell EMC has deep relationships with the ecosystem and application leaders that matter to you. VMware, Microsoft, Oracle, OpenStack, IBM, CommVault, VERITAS, Foglight and more.
Dell EMC Future-Proof Storage Loyalty Program
Get an extra level of investment protection with Dell EMC’s 4:1 Efficiency Guarantee, 3-year Satisfaction Guarantee, “Never-worry” Data Migration, Hardware Investment Protection and All-Inclusive Software offers. The Future-Proof Storage Loyalty Program offers an unmatched set of assurances that your SC All-Flash array will provide lasting value for the lifetime of your applications. Unlike our competitors’ programs, this offer is available at no additional cost – either in terms of higher product price or higher maintenance price.
|Chassis format||All-in-one (dual controllers, internal drive bays, networking) with expansion options|
|Controllers||2 hot-swappable per chassis (active/active)|
|Processors||Single Intel Xeon Processor E5-2630 v3, 2.4GHz, 8 cores||Dual Intel Xeon Processors, E5-2628 v3 2.5GHz, 8 cores|
|Internal storage capacity||30 x 2.5” drive bays|
|System memory||128GB per array (64GB per controller)||256GB per array (128GB per controller)|
|Operating system||Dell Storage Center OS (SCOS) 7.2 or greater||Dell Storage Center OS (SCOS) 7.2 or greater|
|Max raw capacity||2.16PB per array, more in federated systems||4PB per array, more in federated systems|
|Maximum drive count||222 per array (with optional expansion enclosures), more in federated systems||606 drives per array, more in federated systems|
|Supported expansion enclosures||12Gb SAS
SC400: 12 x 3.5” bays
SC420: 24 x 2.5” bays
SC460: 60 x 3.5” bays
SC400: 12 x 3.5” bays
SC420: 24 x 2.5” bays
SC460: 60 x 3.5” bays
|Storage media support||SSD: write-intensive and read-intensive drives (can be mixed in single system), SED SSDs|
|Network and Expansion I/O|
|Front-end-network protocols||FC, iSCSI (supports simultaneous multiprotocol)|
|Max 32Gb FC ports||8 per array (SFP+)||24 per array (SFP+)|
|Max 16/8Gb FC ports||8 per array (SFP+)||24 per array (SFP+)|
|Max 100Gb iSCSI ports||8 per array (SFP28)||16 per array (SFP28)|
|Max 25Gb iSCSI ports||8 per array (SFP28)||16 per array (SFP28)|
|Max 10Gb/1Gb iSCSI ports||Up to 16 SFP+ (10Gb) or Base-T ports per array||Up to 32 SFP+ (10Gb) or Base-T ports per array|
|Management ports||2 per array (1Gb BASE-T)|
|Back-end expansion protocols||12Gb SAS|
|Max back-end expansion ports||8 per array||24 per array|
|Functional & Performance|
|Array configurations||All-flash arrays only|
|Storage format||Native block (SAN)|
|Max SAN hosts||500||500|
|Max initiator ports||1000||1000|
|Max LUN size||500TB||500TB|
|Max number of LUNs||2000||2000|
|Max number of snapshots||8,192||16,384|
|Max IOPS (with latency <1ms)||818,000||1,050,000|
|Max IOPS (80% reads, 20% writes)||330,000||346,000|
|Max throughput (reads)||19,000 MB/s||29,000 MB/s|
|Max throughput (writes)||9,500 MB/s||14,000 MB/s|
|Auto-tiering method||Policy-based migration based on real-time data usage, customizable 512KB-4MB page size.|
|Auto-tiering structure||Up to 2 SSD tiers (write- and read-intensive SSDs)|
|Tiering customizations||User-defined profiles, option to “pin” volumes to any tier|
|RAID support||RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist in single array|
|RAID tiering||Auto-provisions and dynamically restripes multiple RAID levels on the same tier; no need to pre-allocate RAID groups|
|Thin provisioning||Active by default on all volumes, operates at full performance across all features|
|Thin snapshots||Records changes only, snapshots auto-migrate to lower-cost storage|
|Intelligent deduplication and compression||Selectable option per volume “Deduplication + Compression” and “Compression only” modes available|
|Data Mobility and Migration|
|Replication||Heterogeneous arrays (SC Series any-to-any)
Synchronous/Asynchronous via FC or iSCSI
Target/source relationships may be one-to-many or many-to-one
Supports all SC data services on source and target volumes
Change replication types and topologies on demand
Supports cross-platform replication with PS Series/EqualLogic arrays (either direction)
|Volume mobility||Live Migrate (included in base product) enables host-transparent data movement among arrays; see also Federation section|
|Federated multi-array systems||Live Migrate (included in base product) enables host-transparent movement of volumes among arrays Snapshots maintained/preserved during migration|
|Thin Import||Space-efficient, non-disruptive data migration from PS Series (EqualLogic) and MD3 arrays|
|Thin Clones||Clone standalone volumes with zero duplication of data
Clones maintain independent snapshots and replication
Ideal for VDI, test/dev, other applications that require discrete instances of common data
More efficient than dedupe for database copies
|Data Protection, Disaster Recovery, Security|
|Business continuity||Live Volume bi-directional auto-failover, auto-repair
Heterogeneous arrays (SC Series any-to-any, except SCv2000)
Continuous operations, disaster recovery, disaster avoidance
Includes third-site (tertiary) replication options with Live Volume Managed Replication
Zero RTO/RPO with customizable site failover SLAs per volume
Does not require identical hardware at each site
VMware Metro Stretch Cluster, VMware Site Recovery Manager support
|Thin snapshots||Records changes only, snapshots auto-migrate to lower-cost storage|
|Replay Manager||Application-consistent snapshots in Microsoft, VMware, Oracle environments|
|Data-at-rest encryption||Supports self-encrypting drives (SEDs)
Full Disk Encryption (FCE) based on AES-256
Drives certified to FIPS 140-2 Level 2
Key Management Server (KMS) options available for FIPS 140-2 Level 1, 2 and 3
|External key manager support||Gemalto’s SafeNet KeySecure k460, SafeNet KeySecure k250, SafeNet KeySecure k150v Thales EMS 200|
|Management interface||Browser-based (HTML 5)
|Federation||Create large multi-array systems under unified management, with seamless workload migration between arrays via included Live Migrate feature. Add arrays non-disruptively, efficiently utilizing their combined capacity and performance. Volume Advisor monitors federated arrays to suggest optimal data placement and load balancing. Volume movement does not impact snapshots or replication data protection. Federate like or unlike arrays, all SC models supported.|
|Scripting support||Microsoft PowerShell API
|Host OS support||Microsoft Windows Server, Oracle Solaris, HP-UX, Oracle Linux, IBM AIX, Novell NetWare, SLES, Apple, HPTru64, VMware, Citrix XenServer, RedHat|
|Third-party application integrationt||VMware, Microsoft, IBM, OpenStack, Symantec, CommVault, Foglight, Docker|
|Coexistence with PS Series arrays||Replication in either direction
Day-to-day management from a single interface
Thin import: space-efficient, non-disruptive data migration from PS Series arrays
|Certifications||VMware vSphere Metro Storage Cluster, VMware SRM, Veritas Storage Foundations Suite, IBM VIOS Recognized, Oracle Validated Infrastructure (OVI); see Dell Storage Support Matrix for additional certifications and details|
|Reporting/alerts||Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback|
|Firmware updates||Online, non-disruptive.
Firmware may be set to download automatically, with option to trigger installation manually if desired.
|Workload management||QoS, VVOLs|
|SC Hybrid||SCv3000 Series||SC5020|
|Height||13.33 cm (5.25 inches)||13.33 cm (5.25 inches)|
|Width||44.5 cm (17.52 inches)||44.5 cm (17.52 inches)|
|Depth||78.5 cm (30.9 inches)||78.5 cm (30.9 inches)|
|Weight at max configuration||24.22 kg (53.4 lb)||24.22 kg (53.4 lb)|
|Weight empty||15.15 kg (33.4 lb)||15.15 kg (33.4 lb)|
|Rack support||ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes, or tooled mounting in 4-post threaded-hole racks|
|Power/wattage||2 hot-swappable power supplies (1378W or 1485W options available, wattage type not interchangeable after point of sale)||2 hot-swappable 1485W power supplies|
|Maximum output power||1378 W (1378W supply option) or 1485 W (1485W supply option)||1485 W|
|Maximum input power||1584 W (1378W supply option) or 1688 W (1485W supply option)||1688 W|
|Maximum input current||16 A (1378W supply option) or 8.8 A (1485W supply option)||8.8 A|
|Maximum inrush current||55A for 10 ms or less||55A for 10 ms or less|
|Nominal input voltage operating range||100-240 VAC (1378W supply option) or 200-240 VAC (1485W supply option)||200-240 VAC|
|Nominal input frequency||50/60 Hz||50/60 Hz|
|Thermal output/heat dissipation (maximum)||5,770 BTU per hour (1378W supply option) or 5,760 BTU per hour (1485W supply option)||5,760 BTU per hour|
|Environmental Operating Conditions|
|Operating temperature||50 - 95°F (10 - 35°C)|
|Non-operating temperature||-40 - 149°F (-40 - 65°C)|
|Operating humidity ranges (non-condensing)||10% to 80% with 29°C (84.2°F) maximum dew point|
|Non-operating humidity (noncondensing)||5% to 95% with 33°C (91°F) maximum dew point|
|Inlet type||NEMA 5-15/CS22.2, n°42|
|Services||Dell ProSupport with deployment and consulting services. Optional ProSupport Plus is available offering proactive and preventative services to improve performance and stability. Dell Optimize is available for additional ongoing strategic counsel and guidance from a highly trained system analyst.|
|Diagnostics engine||Integrated Dell Remote Access Controller (iDRAC)|
|System sizing||Dell EMC Live Optics|
|Drive warranty||All SSDs are warrantied for full lifetime wear-out replacement with valid service agreement. SSD warranty covers all formats: SLC, MLC an d TLC|
Solutions & Services:
Dell EMC offers complete end-to-end services
Optimizing the IT lifecycle is vital. Dell EMC has expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
ProSupport Enterprise Suite
Gain the freedom to focus on your business transformation with the support expertise and insights Dell EMC is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and service account management.
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Trust Dell EMC experts to lead deployments from basic hardware installations through planning, configuration and complex integrations. Our complete suite of deployment services and professional certifications helps you achieve business outcomes today and tomorrow.
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
- Pricing and product availability subject to change without notice.
