Dell PowerVault Storage

Affordable entry storage optimized for SAN/DAS

Optimized for SAN/DAS, PowerVault storage delivers the performance, capacity and operational simplicity that price-sensitive, small to medium-sized businesses demand. PowerVault ME5 supports many types of workloads including HPC, databases, VDI, safety and security, select Edge use cases, PowerEdge server capacity expansion and more.

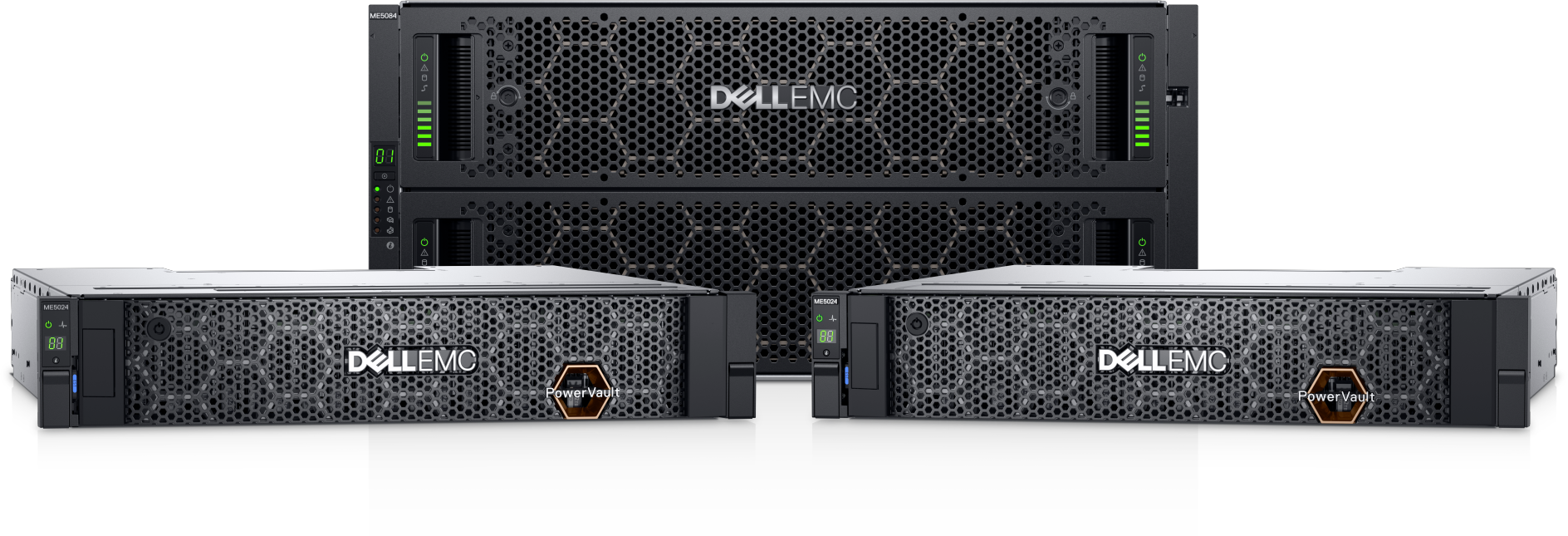

PowerVault ME5 Products

PowerVault ME5 is the new gold standard for entry storage with blazing speed, higher capacity limits and even greater simplicity.

PowerVault ME5012 Storage Array

Up to 2.40PB capacity with 9x 2U expansion enclosures
Up to 5.28PB capacity with 3x 5U expansion enclosures
SAN/DAS Multiple protocols: SAS, FC, iSCSI
Dual-active controller architecture
12Gb SAS backend
All premium software features included

PowerVault ME5024 Storage Array

Up to 2.34PB capacity with 9x 2U expansion enclosures
Up to 5.22PB capacity with 3x 5U expansion enclosures
SAN/DAS Multiple protocols: SAS, FC, iSCSI
Dual-active controller architecture
12Gb SAS backend
All premium software features included

PowerVault ME5084 Storage Array

Up to 6.72PB capacity with 3x 5U expansion enclosures
SAN/DAS Multiple protocols: SAS, FC, iSCSI
Dual-active controller architecture
12Gb SAS backend
All premium software features included

PowerVault ME4 Products

PowerVault ME4 is purpose-built for SAN/DAS workloads with simplified management.

PowerVault ME412 Expansion Enclosure

2U 12 x 3.5" drive bays (12Gb SAS)
Intel 2-core, 2.2GHz
Multi-protocols – SAS, iSCSI, Fibre Channel
Single/Dual Controller

PowerVault ME424 Expansion Enclosure

2U 24 x 2.5" drive bays (12Gb SAS)
Multi-protocols – SAS, iSCSI, Fibre Channel
Single/Dual Controller

PowerVault ME484 Expansion Enclosure

5U 84 x 3.5" drive bays (12Gb SAS)
Multi-protocols – SAS, iSCSI, Fibre Channel
Dual Controller

PowerVault MD JBODs for PowerEdge DAS

A PowerVault and PowerEdge solution that takes a step towards the future to bring compute power and storage scalability firmly together with long term investment protection. A solution that simplifies the challenges of server capacity expansion and delivers high-speed application access to data. A solution that’s Server-ready, Storage-ready, and Future-ready.

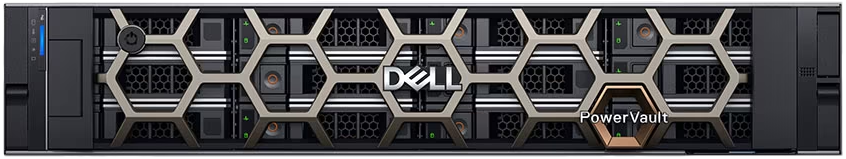

PowerVault MD2412 (JBOD)

Low-cost dense storage

Up to 1.92PB with max 8 enclosures
12 x 3.5” drive bays in 2U chassis
16G server connect: 24Gb SAS
14G/15G server connect: 12Gb SAS
Expansion connect: 12Gb SAS

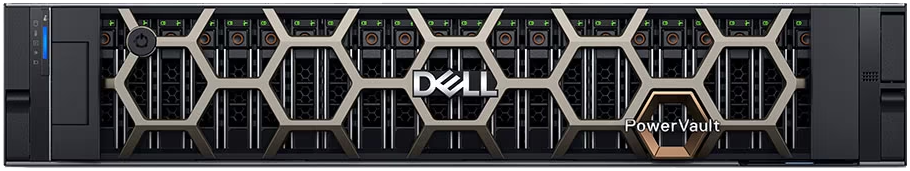

PowerVault MD2424 (JBOD)

Performance-optimized

Up to 757.28TB (SSD) with max 4 enclosures
Up to 230.40TB (HDD) with max 4 enclosures
24 x 2.5” drive bays in 2U chassis
16G server & internal connect: 24Gb SAS
14G/15G server connect: 24Gb SAS
Expansion connect: 24Gb SAS

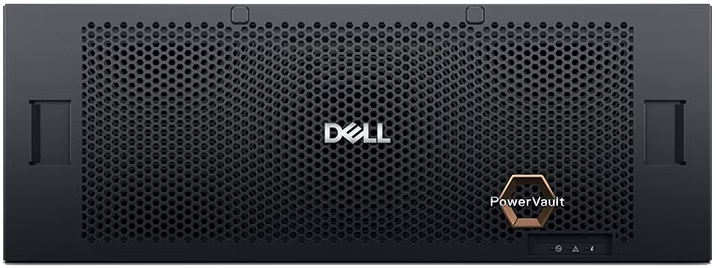

PowerVault MD2460 (JBOD)

High-density storage

Up to 2.40PB with max 2 enclosures
60 x 3.5” drive bays in 4U chassis
16G server connect: 24Gb SAS
14G/15G server connect: 12Gb SAS
Expansion connect: 12Gb SAS

PowerVault ME484 Dense JBOD

Up to 6.72PB capacity
84 x 3.5" drive bays
Up to 336 drives
Intel 2-core, 2.2GHz
Multi-protocols - FC, iSCSI, SAS
Dual I/O Module
12Gb SAS Connectivity

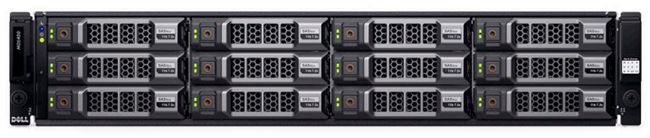

PowerVault MD1400 Direct-Attach Storage

Up to 1.92PB capacity
Up to 12 hot-pluggable 3.5” or 2.5” drives
3.5” and 2.5” NL-SAS, 2.5” SAS and 2.5” SSD drives
Expansion up to 8 enclosures
Unified mode connectivity for single or redundant paths

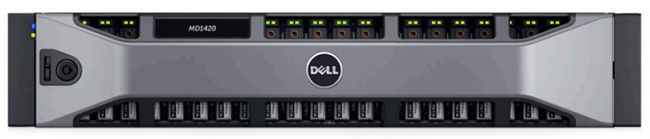

PowerVault MD1420 Direct-Attach Storage

Up to 1.47PB capacity
Up to 24 hot-pluggable 2.5” drives
2.5” NL-SAS, SAS and SSD drives
Expansion up to 8 enclosures
Unified mode connectivity for single or redundant paths

Make SAN & DAS storage simple, fast and affordable

PowerVault ME5 Series Storage
Accelerate application performance and data access for a wide range of workloads. PowerVault ME5—optimized for SAN and DAS environments—delivers up to 640K IOPs1with more capacity, controller memory and faster host connectivity options. Additionally, an all-inclusive software model means no costly licensing, making PowerVault ME5 easier to own, deploy and use.

PowerVault MD Series JBOD
PowerVault JBOD options add storage capacity to three generations of PowerEdge servers while protecting customer investments with support for emerging technologies.

Simple

Quick installation, simple to use and easy to own with all-inclusive software.

Fast

Optimize workloads with more processor power, IOPs, bandwidth and backend connectivity.

Affordable

Greater scalability for a variety of small to medium-sized business workloads. Start small and pay-as-you-grow.

Server-ready

PowerVault MD Series are validated, tested and future-ready to work with previous and new generations of PowerEdge servers.
