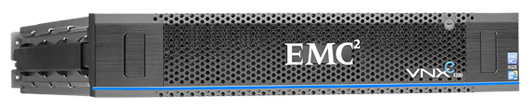

VNXe3200 Hybrid Storage
for distributed sites
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
EMC VNXe3200 offers you a full-featured SAN and NAS array in affordable configurations with flash storage.
All EMC Store VNXe3200 configurations include:
- Dual storage controllers
- 4-port 1 GbE/10 GbE (iSCSI, CIFS, NFS) connectivity
- VNXe Base Software
- Enhanced hardware and software support
About VNXe3200
Get enterprise features at entry-level prices with our most affordable unified storage family: EMC VNXe3200. This efficient NAS and SAN array brings you high-end features as standard - including MCx multicore optimization, FAST Suite auto-tiering, flash SSD caching, plus the option of Fibre Channel host connectivity.
VNXe3200 arrays ship with VNXe Base Software, which includes EMC Unisphere management, thin provisioning, flash support, file deduplication and compression, unified snapshots, remote block replication, and more.
Like all EMC VNX and VNXe arrays, VNXe3200 Hybrid Storage is a great choice for virtualized environments because of extensive integration with VMware vSphere and Microsoft Hyper-V.
Key Features:
- Scales up to 500 TB
- Built for 99.999% availability
- Offers dual-controller unified storage: block and file
- Includes 4-port 1 GbE/10 GbE connectivity
- Optional 4-port 8 Gb Fibre Channel connectivity
Hardware Essentials
- The new VNXe3200 is the most affordable unified hybrid array.
Simple
- Setup NAS or SAN in minutes with new Unisphere wizards
- Tight VMware and Microsoft application integration
- Integrated service ecosystem for remote monitoring and repair
Efficient
- Automated set and forget tuning with FAST
- Reduce capacity requirements by up to 50% with thin provisioning and file deduplication
- Flash optimized MCx multicore
Protected
- Appsync TM simple, SLA driven protection
- Basic and advanced protection options including snapshots, native Remote Protection and RecoverPoint
- VSPEX proven architectures integrate the new VNXe3200 & Data Domain DD2200
All flash
- Unified; Multi-protocol
- Up to 75K IOPS performance
- Affordable price, Low $/GB
Software Essentials
- More value: Additional software features added to base software
- Includes Unified Snapshots and new Remote Protection
- Includes new Unisphere Central multi-system management
- Comprehensive application support including Microsoft Exchange, SQL, VMware®, and Hyper-V
Hardware:
The Most Affordable Hybrid Storage
The newest member of the EMC® VNXe® Series is the most affordable unified hybrid array out there – and it’s also the most capable. The new VNXe3200™ has the power of EMC’s VNX2 unified storage systems - compressed into an efficient, easy-to-use package designed for resource-constrained IT departments in any size company.
The VNXe3200 adds powerful features which were only available on higher end VNX models including FAST™ VP auto-tiering, FAST Cache SSD caching, Fibre Channel host connectivity, and MCx™ multicore optimization. The new multicore enhancements alongside a beefed up quad core 2.2 GHz processor delivers up to 3X the performance compared to the previous generation VNXe3150 – supporting over 200 VM’s, 2500 Exchange users, or 600 Virtual Desktops in a very small space.
The hybrid VNXe3200™ storage system retains the affordability, simplicity, and efficiency that VNXe systems are known for – including Unisphere™ awardwinning simplicity, unified connectivity, and EMC’s next generation support services - to deliver an incredible value in entry-level storage.
Hybrid For Mixed Workloads
Industry analysts report that the most economical way to deploy high speed flash drive technology is in hybrid or multitier storage arrays combining lowcost, high-capacity hard disk drives (HDDs) with a small amount of highperformance solid-state drives (SSDs) to deliver low storage cost per I/O. Hybrid arrays have the intelligence to detect hot spots and balance workloads from SSD to HDD as required.
Common use cases include:
- Applications —Microsoft Exchange, SQL, SharePoint, Oracle
- Private Cloud — VMware® ESX® or Microsoft Hyper-V virtual machines
- Virtual Desktops and Home Directories
Simple. Efficient. Protected.
The VNXe3200 can be setup for NAS or SAN in minutes and is designed to integrate directly into your application and virtualization environments. It stores and protects your data while lowering your total costs in terms of $/IOPS and $/GB. The VNXe3200 was also designed for 99.999% availability utilizing dual controllers, flexible RAID options, and non-disruptive upgrades.
Simple
The VNXe3200 was designed with ease of use in mind.
- You can setup DAS or NAS or SAN in less than 15 minutes with the new VNXe Configuration Wizard. With the free add-on EMC Storage Integrator for Windows you can provision storage for Microsoft applications in minutes not hours. Unisphere Central can be used for more advanced multisite deployments of mixed VNXe and VNX’s.
- Now, you can easily deploy an automated private cloud with deep VMware and Microsoft integration. The VNX family has the best virtualization integration with over 96 integration points into both VMware and Hyper-V. For three years in a row, an independent research firm Wikibon named EMC VNX and VNXe the #1 storage for VMware integration.
- The improved, integrated service ecosystem includes EMC Secure Remote Support (ESRS) for remote monitoring and repair capabilities as well as dial home and remote chat.
Efficient
The VNXe3200 also has leading edge efficiency features which lower the overall cost of the system.
- You can boost performance while lowering costs using our hybrid array powered by EMC’s FAST Suite. FAST will use SSD first and then put colder data on high capacity HDDs. FAST is automated for set it and forget it tuning.
- Reduce capacity requirements by up to 50% with thin provisioning and file dedupe. In the past, you had to make a trade-off between performance and efficiency features. Combined with the FAST suite, you can deploy thinly provisioning LUN’s and filesystems without performance degradation.
- This system does a lot in a densely packed space. With a flash optimized architecture, MCx, 48GB RAM, and support for SSD’s and HDD’s, you can store up to 200 VM’s in 4U.
Protected
The system delivers the right combination of built-in and add-on EMC software capabilities to support your recovery SLAs.
- Unified Snapshots and Remote Protection provide array-based data protection and disaster recovery.
- With AppSyncTM protect all of your critical applications in a single click, dial in the correct service level and enable application owners to drive protection.
- RecoverPoint provides local and remote Continuous Data Protection for recovery to any point in time. You can replicate with RecoverPoint to both VNXe and VNX systems with automatic sync options and choice for RPO’s.
- You can use VSPEX® proven architectures (available from partners) to purchase a holistic (server, network, storage) architecture that integrates the new VNXe3200 & Data Domain2200 backup appliance.
VNXe3200: Most Affordable Unified All Flash Array
The VNXe3200 is EMC’s most affordable unified, hybrid storage array and has earned the recognition for its leading simplicity and efficiency in entry-level storage. However, recognizing that sustained and predictable performance can also be a requirement in this segment for certain workloads, the VNXe3200 Unified All Flash Array is positioned to address this performance need. Offered in 2TB, 3TB, 4TB and 8TB slim 2U form factor configurations, the all flash VNXe3200 maintains its full enterprise feature-set, management simplicity, and Connect Proactive Support capability while providing a real price/performance alternative in the entry all-flash segment.
Powerful
Using its MCx multicore optimization features, the VNXe3200 Unified All Flash Array is poised to support hundreds of VMs on a single system while delivering predictable performance of up to 84K IOPS (4TB) that can turbo-charge a variety of virtualized application, database, and transactional NAS workloads.
Affordable
The VNXe3200 is available in 2TB, 3TB, 4TB and 8TB configurations. Each is aggressively priced that help customers reduce $/IOPS and $/GB making it the most affordable Unified All Flash Array in the entry all-flash segment. The starting price for the VNXe3200 Unified All Flash Array is competitive compared to similar offerings in the entry all-flash market.
Unified
VNXe3200 Unified All Flash Array integrates SAN and NAS into one system – delivering both file and block storage in a single array while supporting multiple storage protocols (CIFS, NFS, iSCSI, FC). In the case of the VNXe3200 Unified All Flash Array, you always have the flexibility to add more flash to the system or convert it to a hybrid flash array to deliver the performance of Flash with the cost of Disk.
VNXe Software – Your Advantage
IT environments everywhere are constantly under pressure to improve productivity while meeting service levels and keeping costs down. Whether managing one or multiple sites, simple and efficient delivery of storage services for the IT ecosystem ensures the business is optimizing virtualized applications, improving utilization and ensuring valuable data is protected and secure. VNXe supports tight integration with VMware to further facilitate efficient management of virtualized environments.
Every VNXe unified storage platform comes with base software solutions, including EMC Unisphere for application-aware management, file deduplication with compression for increased efficiency, thin provisioning for adding storage on-demand, as well as CIFS, NFS, iSCSI, and FC. The VNXe3200 now includes snapshots for local data protection without additional licensing charges.
| VNXe3200 | Description |
|---|---|
| VNXe Base Software |
|
| EMC Storage Analytics |
|
| RecoverPoint Advanced Protection |
|
| AppSync Copy Management |
|
Recommended Optional Software:
- PowerPath®: intelligent multipathing and load balancing for physical and virtual environments. Licensed separately.
- EMC Storage Integrator for Microsoft: Provision storage for Windows, Exchange, and SharePoint 4 times faster. Free download from support.emc.com
- Virtual Storage Integrator (VSI): Let VMware admins manage VNXe storage from within vCenter. Free download from support.emc.com
- AppSyncTM: Fast copy and rapid restores of VMware, Exchange, SQL, SharePoint, Oracle and more
Comprehensive Online Support
A click on the VNXe support tab puts a world of resources at your fingertips. Download documentation or plugins, read online knowledge base articles, and watch how-to videos. Get answers faster than ever before with the integrated online support forum and live-chat capability. The system also includes the same dial-home capabilities as the VNX Series products. You can even order new drives and check licensing status from the interface.
The VNXe3200 includes a standard three-year Basic warranty, with next business day parts replacement and 5x9 remote support. An optional Enhanced warranty providing next business day onsite support and 24x7 remote support. Premium warranty upgrade options with four-hour onsite response as well as post-warranty maintenance support are also available.
Software:
The new EMC® VNXe3200™ hybrid array comes with all of the right value-add software to make it easy to manage data capacity, performance, and protection.
VNXe Base Software
More Included For No Additional Cost
The VNXe® Operating Environment is the lifeline of the integrated VNXe3200 unified hybrid system. It provides support for NAS/SAN protocols (NFS, CIFS, iSCSI, Fibre Channel), FAST Suite (FAST VP + FAST Cache), File Deduplication & Compression, Thin Provisioning, Event Enabler (common Anti-Virus), File Level Retention, and Integrated Support/Dial-Home.
EMC’s FAST™ Suite unlocks the power of Flash in your VNXe3200. FAST VP saves money and time with auto-tiering from high performance SSD to high capacity disk. And you can extend your system cache by enabling EMC FAST Cache for a simple, 3X workload boost across your entire system.
Powerful Management
Every VNXe3200 now comes with the new improved Unisphere Management, Unisphere Central, and Monitoring and Reporting for VNX Family.
Integrated Data Protection
Our new snapshots – one technology for both file and block - are now very simple to create, manage, schedule, restore, and expire, and are designed to support up to 256 snapshots with comprehensive lifecycle management. New Remote Protection provides array-based asynchronous block replication, enabling users to protect critical application data.
Optional VNXe Software Bundles
Storage Analytics
EMC Storage Analytics offers powerful reporting and analytics tools for VMware environments. This is a storage-only version of vCenter™ Operations Manager with an EMC Adapter for VNXe.
More Software Choices
In addition to the enhanced VNXe Base Software and the new VNXe software bundles, the VNXe3200 can bring you the best of what EMC has to offer.

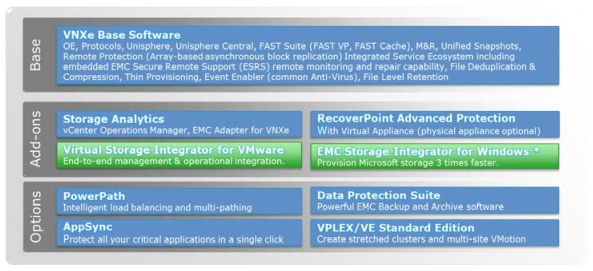

VNXe Software Choices
RecoverPoint Advanced Protection
RecoverPoint provides local and remote Continuous Data Protection for recovery to any point in time. You can replicate with RecoverPoint to both VNXe and VNX systems with automatic sync options and choice for RPO’s. Includes local and remote capabilities.
AppSync
Fast copy and rapid restores of VMware, Exchange, SQL, SharePoint, Oracle and more
PowerPath®
Intelligent load balancing and multi-pathing – recommended for high availability NAS or SAN deployments.
Data Protection Suite
The EMC Data Protection Suite contains EMC’s powerful backup and protection software products like Networker®, Avamar®, and Data Protection Advisor all in one easy to use package.
Syncplicity
Create your own private drop-box with EMC Syncplicity®. Gain the ability to sync and share easily within your company walls while reducing the risk of data exposure.
EMC Storage Integrator For Windows
Provision and deploy Microsoft environments 3 times faster using the built-in MMC, and provisioning wizards for Exchange, SharePoint, and Hyper-V.
Virtual Storage Integrator
With EMC’s VSI, you can manage VNXe directly from vCenter.
Specifications:
| VNXe3200 Hybrid Storage Specifications | |
|---|---|
| Compares To | NetApp FAS2552 IBM Storwize V3700 Dell EqualLogic Nimble CS300/500 |
| Max Raw Capacity | 500.0 TB |
| Protocol | CIFS SMB 3.0 (CIFS) NFS iSCSI Fibre Channel |
| Storage Type | NAS SAN Unified |
| Drive Type | Flash SSD SAS NL-SAS |
| Hybrid Drive Support | SSD 15K SAS 10K SAS 7.2K NL-SAS |
| Performance Optimization | MCx FAST VP FAST Cache |
| Drive Enclosure | 2.5" SAS or Flash (2U), 25 drives 3.5" SAS, NL-SAS or Flash (2U), 12 drives |
| Min/Max Drives | 6 to 150 |
| Storage Processors (SPs) | 2 x Intel Xeon E5-2407 4-Core 2.2 GHz |
| CPU/Memory per Array | 48 GB (24 GB per processor) |
| Product | VNXe Products |
| Solution For | Entry-Level Storage Storage Consolidation VDI |
| Browse By | Primary Storage Hybrid Storage Array |
Documentation:
Download the VNXe3200 Hardware Datasheet (PDF).
Download the VNXe3200 Software Datasheet (PDF).
