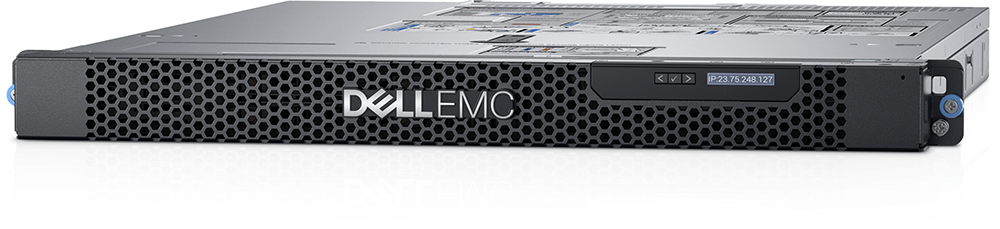

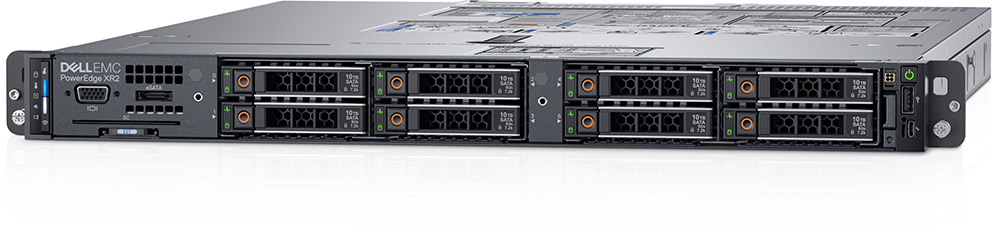

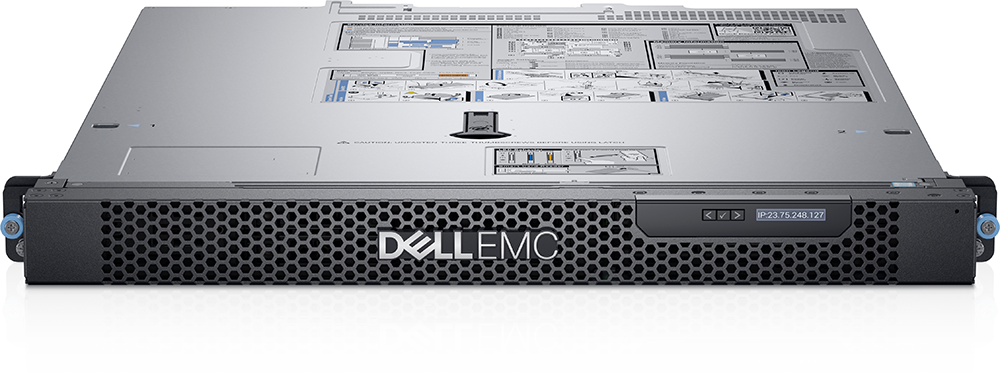

Dell PowerEdge XR2
Bringing compute to the source

Overview:

Built from the ground up for harsh environments, the PowerEdge XR2 is compact size features Intel Xeon Scalable processors and is certified for military and marine use.

Rugged, ready and right along with you

Built from the ground up for harsh environments, and featuring the latest Intel® Xeon® SP processors, the rackable compact size and certifications in shock, vibration, dust, humidity, EMI and maritime mean the XR2 is agile. The de-branding and customization capabilities mean it’s versatile. So whoever you are and wherever you go, you can take rugged with you.

Insights for the road ahead. Technology for the long haul.

This is the best in rugged 1U short-depth computing. This is software-defined storage in space-constrained installations. Deliberately designed to take the hardest conditions head-on, the new PowerEdge XR2 features the latest Intel® Xeon® SP processors and brings together the best combination of functionality and value in the industry, plus extensive customization options from OEM custom intake services.

Data is the lifeblood of your organization. This is the heartbeat.

With metronomic precision, the Dell EMC OEM PowerEdge XR2 server offers you secure, worry-free data center performance – anytime, anywhere. Featuring leading rugged design, world-class quality, supply chain and support, this compact, rackable server offers leading Intel-powered performance, industry-certified capabilities, long life and extensive customization capabilities.

Award-winning manageability. Tier-1 vendor quality.

Secure, anytime access provided by industry-leading iDRAC (integrated Dell Remote Access Controller), plus integrated lifecycle controller support for your maintenance and management needs.

The flexible configuration options and global support availability you expect from a Tier-1 vendor, plus the enterprise-grade common components and platform, ensure consistency from the data center to the field, and quality and reliability at every turn. The XR2 features functionality for dual processors, redundant hot-swappable power supplies and up to eight hard drives. It’s the ideal balance of portability and power and fully configurable for your rugged industry needs.

• The next generation of server hardware and software technology
• Upgrade to the new Intel Xeon Skylake-SP CPU stack.
• Reduced depth for constrained spaces
• Tested with military rigor
• Tool-less storage access
• Shock-isolated hard drive bay
• The toughest technology available in enterprise-caliber servers
• Hot-swappable components

Your data center anywhere. For insights everywhere.

Small in size, but packed with power, the XR2 is the definitive rugged two-socket server. It provides premium attributes along with ample CPU horsepower, memory capacity, drive capacity, and I/O — it’s a vital companion for military/defense and maritime environments, for when you need your data center far away from the data center.

Features:

Expand your compute outside the data center

Built from the ground up for harsh environments, its rackable compact size takes less space and is certified to withstand shock, vibration, dust, humidity, and EMI for both military and maritime applications. And with worldwide support and world-class supply chain excellence, whoever you are and wherever you go, you can take rugged with you.

Build your company recognition as a rugged server provider

Showcase your logo on this OEM Ready rugged PowerEdge server today and expand your brand presence using an industry leading product proven to drive performance and customer satisfaction.

Rugged and ready for use outside the data center

Technical Specifications:

Dell PowerEdge XR2 Specifications
Processors	Up to 2x150W Intel Xeon Scalable processors or one 150W Intel Xeon Scalable processor
Memory	DIMM Speed: Up to 2667MT/s DDR4 DIMMs Memory Type: RDIMMs/LRDIMMs Memory Module Slots: 16 Maximum RAM: Up to 2TB
Storage controllers	Internal controllers: PERC H330, PERC H730P, HBA330
Power supplies	Redundant hot swap 550W power supplies
Dimension	Width: 17.08" (434.00mm) Depth: 21.4" (548mm) (2.5" HHD config) Empty weight: 7.8Kg / 17.2 lb Min config weight: 11.5Kg / 25.2lb Max weight: 13 Kg / 28.6 lb
Form Factor	1U rack server
Embedded management	IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional
Bezel	Optional OEM debranded or rebranded bezel to showcase your logo
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot System Lockdown Secure Erase Integrated Common Access Card Reader
Ports	Front ports: 1 Video 1 eSATA, 1 USB 2.0,dedicated iDRAC Direct Micro-USB Rear ports: 1 Video 1 serial 2 USB 3.0, dedicated iDRAC network port Video card: 1 VGA
Accelerators	1 x NVIDIA T4 GPU Supported in High Performance Chassis
OEM-ready version availabe	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
