Overview:

The Dell PowerEdge HS5610 purposebuilt for cloud service providers most popular IT applications:

Virtualization/Cloud
Scale-out Database
Software-Defined Storage Node

The Dell PowerEdge HS5610 is a 1U, two-socket rack server purpose-built for Cloud Service Providers’ most popular IT applications. This scalable server delivers technology optimization without the financial and operational burden of supporting extreme configurations. With tailored performance, I/O flexibility, and open ecosystem system management, you gain simplicity for large-scale, heterogeneous SaaS, PaaS, and IaaS datacenters.

Designed for your workloads

Faster performance with up to two 4th generation Intel Xeon Scalable processors with up to 32 cores per socket
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec
Gain cold aisle serviceability with Front I/O

Tailored to fit your needs

Configurations that easily scale
Validated workloads to minimize extra costs and overhead
Option for open ecosystem management with Dell Open Server Manager built on OpenBMC
Save time with a broad selection of validated vendor firmware COMMs cards and SSDs

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with an autonomous infrastructure

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC. The HS5610 offers Open Server Manager built on OpenBMC™ for open ecosystemsystem management.

Sustainability

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.

Rest easier with Dell Technologies Services

Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 countries and backed by our 60K+ employees and partners.

Features:

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Tailored for you

The PowerEdge HS5610 is purpose-built for cloud service provider workloads, ensuring faster time to market.

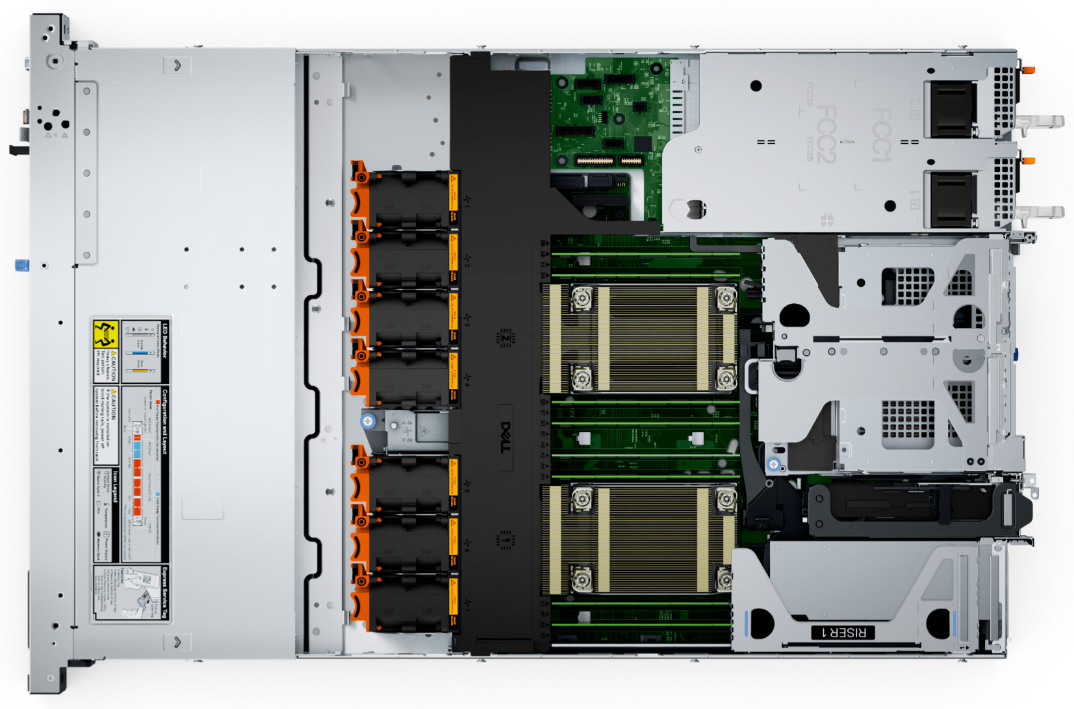

PowerEdge HS5610 Internal

Optimization without the expense

Get the benefits of a tailored experience without the financial and operational burden of a full customization. This scalable solution provides I/O flexibility, an open ecosystem and simplicity for large SaaS, PaaS and IaaS datacenters.

Ideal for virtualization, cloud native compute applications and scale-out databases
Supports up to two 4th generation Intel Xeon Scalable processors with up to 32 cores for faster and more accurate processing
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec
Gain cold aisle serviceability with front I/O
Up to 6 x 2.5 NVMe, 4 x 3.5 SAS/SATA, or 10 x 2.5 SAS/SATA/NVMe, plus up to 2 x 2.5 SAS/SATA/NVMe optional rear
Embedded systems management options including Open Server Manager built with OpenBMC™ or iDRAC
Save time with a broad selection of validated vendor firmware COMMs cards and SSDs

Systems Management and Security Solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent Automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Technical Specifications:

Dell PowerEdge HS5610 Specifications
CPU	Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	16 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 4800 MT/s Supports registered ECC DDR5 DIMMs only
Storage Controllers	Internal Controllers: PERC H755, PERC H755N, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (hot swap for 6 x 2.5-inch configuration) or USB; External HBA (non-RAID): HBA355e; Software RAID: S160
Drive bays	Front Bays 0 drive bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB Up to 6 x 2.5-inch NVMe SSD max 92.16 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
Hot Swap Redundant Power Supplies	1800 W Titanium 200—240 VAC or 240 HVDC 1400 W Platinum 100—240 VAC or 240 HVDC 1100 W Titanium 100—240 VAC or 240 HVDC 1100 W LVDC -48 — (-60) VDC 800 W Platinum 100—240 VAC or 240 HVDC 700 W Titanium 200—240 VAC or 240 HVDC
Cooling Options	Air cooling
Fans	Standard (STD) fans / High performance Gold (VHP) fans, Up to 7 hot swappable fans
Dimensions and weight	Height – 42.8 mm (1.68 inches) Width – 482 mm (18.97 inches) Depth – 748.79 mm (29.85 inches) with bezel and 712.95 mm (28.05 inches) without bezel Weight – 19.45 Kg (55.33 pound)
Form Factor	1U rack server
Embedded Management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Open Server Manager built on OpenBMC Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM card
Network options	1 x OCP card 3.0 (optional) : 2 slots on the front and 1 slot on rear for 6 x 2.5-inch configuration
Ports	Front ports: 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Internal ports: 1 x USB 3.0 (optional Rear ports: 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial (optional)
Operating Systems and Hypervisors	Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Canonical Ubuntu Server LTS
OEM-ready version available	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.

Documentation:

Dell PowerEdge HS5610 Datasheet (.PDF)

Dell PowerEdge HS5610
Open platform, cloud scale servers purposebuilt for Cloud Service Providers
