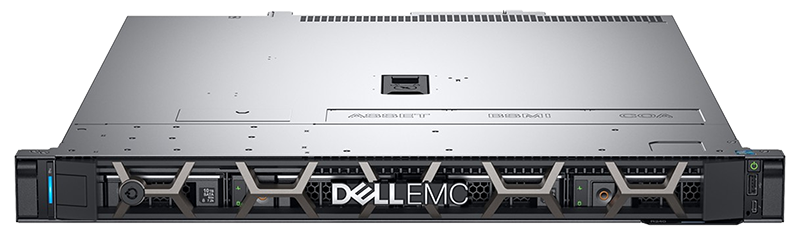

Dell PowerVault NX440 Network Attached Storage
Network attached storage that offers automated setup and data management capabilities for efficient data sharing

Overview:

Network attached storage that offers automated setup and data management capabilities for efficient data sharing.

• Single socket, 1U rack mount NAS server
• Intel Xeon Processor E-2124
• Up to four hot-swap 3.5” NL-SAS or SATA drives for data and OS
• Up to 48TB* memory
• Leveraging the PowerEdge R340 PowerEdge Server technology

An affordable and reliable rack-mounted network-attached storage (NAS) offers you advanced data management and efficient data sharing. The Dell Storage NX440 array is designed to improve performance with Microsoft Windows Storage Server.

Dell EMC NX Windows NAS Series

Dell EMC NX Windows NAS Series storage appliances combine the latest Dell EMC PowerEdge technology with Windows Storage Server 2016 from Microsoft for rapid deployment, easy management, and enhanced performance.

The Dell EMC NX Windows NAS Series is an affordable storage solution for customers who want the simplicity of Microsoft Windows Server together with the power of Dell EMC servers and storage — all in a ready-to-deploy NAS appliance.

New storage innovations from Microsoft

All Dell EMC NX Windows NAS Series storage appliances ship with Microsoft Windows Storage Server 2016 preinstalled for fast and easy deployment. Based on Windows Server 2016, Windows Storage Server 2016 Standard includes all of the major storage innovations in Microsoft’s latest server operating system:

• Storage-agnostic, block-level, synchronous replication between servers or clusters
• Enhancements to Storage quality of service (QoS), data deduplication and ReFS

Features:

Enhanced NAS

The Dell Storage NX storage appliances are easy to use and manage through a familiar, central management interface for stand-alone or cluster configurations:

• OS pre-installed for easy deployment
• Optimized for file serving with Windows Storage Server 2016
• Clustering capabilities when using the NX3340

PowerEdge platforms

Rely on high speed and efficiency with NAS appliances built on 13th and 14th Generation PowerEdge rack mount server technology.

• The latest generation multi-core Intel Xeon processors
• Up to 64GB* of memory and 192TB* raw capacity (NX3240)
• Options for SATA, NL-SAS and SAS drives

NAS gateway option

Leverage additional SAN arrays for massive external expansion by installing the NX3340 option as a NAS gateway. Support for clustering up to 64 nodes leveraging Clustered Shared Volumes (CSV) when connected to PowerVault MD3, EqualLogic or Dell Compellent storage arrays.

Simple Management

Spend less time managing data and more time building your business using Microsoft® System Center and the Remote Desktop for Administration feature in Windows Storage Server 2016 or the Integrated Dell Remote Access Controller (iDRAC9 or iDRAC8) Enterprise Edition to manage your data. In addition, you’re able to efficiently utilize NAS capacity resources and optimize your disk space with integrated features within the Dell Storage NX family, including:

• Data reduplication
• Thin provisioning
• DFS-R synchronization capabilities across limited bandwidth network connections in distributed and remote office environments
• Volume Shadow Copy Service (VSS) for SMB file shares that allows backup operations using snapshots of remote file shares supporting SMB-based server applications

Updated OS

The Dell Storage NX family features Windows Storage Server 2016 software offering Microsoft Windows Storage Server 2016 performance and versatility in the NAS appliances. It includes:

• Latest SMB 3.0 features that support Hyper-V and SQL server
• Continuous availability and failover clustering with NFS and iSCSI
• Automatic detection and use of multiple network connections between SMB client and server

Technical Specifications:

Dell Storage NX440
Product Configurations
Storage	2x2.5” HDDs for OS (RAID 1) or 4x2.5” HDDs for OS (RAID 5)
Max Internal Capacity	Leverages shared storage arrays attached via SAS, iSCSI or FC
Types of Data	File and Block (Microsoft iSCSI target)
Drive Capacities	NL-SAS (10K) 600GB for OS (2 or 4 drives required)
External Expansion	Each platform in a clustered configuration
Technical Highlights
Form Factor	1U rack-mount system
Processor	Single Intel Xeon E-2124 3.3GHz, 8GB Mem, Entry Config or Single Intel Xeon E-2124 3.3GHz, 16GB Mem, Performance Config
File Access Protocols	CIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)
Block Access Protocols	Leverages shared storage backend for block access
OS supported	Microsoft Windows Storage Server 2016 Standard Edition
Internal RAID options	Standard options: two HDDs for OS (RAID 1) or four HDD for OS (RAID 5) PERC H730 (internal drives)
External RAID	PERC H830 (optional)
Power
AC Power/Max Current	Redundant and non-redundant hot-plug 750W PSU
Chassis
Bezel	LCD Bezel with Quick Sync 2 (at-the-box management)
Dimensions	Height: 42.8mm (1.68”) Width: 482.0mm (18.98”, with rack ears) Maximum Depth: 705.05mm Maximum weight: 21.9 kg (48.28 lbs)
Availability	Hot-plug hard drives, hot-plug redundant power, hot-plug redundant cooling, ECC memory
Cluster Support	Yes, up to 64 nodes
Slots	Three PCIe 3.0 slots (all x16 bandwidth)
Systems/Data Management
Management	Dell OpenManage Essentials, iDRAC9 Enterprise
Data protection feature	Replication (DFS-R), Snapshots (VSS) Optional TPM 1.2/2.0

Solutions & Services:

Dell EMC offers complete end-to-end services

Optimizing the IT lifecycle is vital. Dell EMC has expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
