Dell DR4000 Advanced Disk Backup and Disaster Recovery Solution
Streamline backup and recovery operations

Overview:

Companies of all sizes increasingly struggle to manage the relentless growth of data. Essential to the business yet often redundant in nature, data can strain storage and backup processes as administrators strive to ensure data availability and integrity while still meeting capacity and backup window constraints. The Dell DR4000 deduplication and compression backup appliance can help customers alleviate these growing problems. By removing redundant data from the backup work stream, the DR4000 can drastically reduce the storage footprint, enable backup data to remain on disk and online longer, provide faster and more reliable restores, and reduce tape management complexity.

Optimize your data management while reducing reliance on tape backups with the Dell DR4000 disk-based data protection and recovery solution.

• Protect your investment — all inclusive licensing model with no hidden costs.
• Enhance workflow performance with target-based deduplication, helping reduce bandwidth requirements for data transfer by up to 15 times.
• Simplify your IT operations by making data preservation and recovery significantly easier.

Common data types that would be backed up to the DR4000 target appliance —Exchange, SQL, Oracle, VM's, etc.

• Streamline backup
  DR4000 is a fast, disk-based backup, data protection and recovery solution appliance that helps reduce workflow processes.
• Eliminate redundant data
  Help ease the pain of data growth and reduce disk capacity requirements by up to 93 percent.
• Cost-effective
  Its all-inclusive licensing model helps ensure future features and additional benefits at no additional cost. Replication capability is included with DR4000.

Advanced data protection and disaster recovery

DR4000 has built-in data protection safeguards in both hardware and software to verify backup integrity. The non-volatile RAM (NV-RAM) is designed to ensure data protection in case of a power loss and proactively detects corruption due to faulty hardware. The DR4000 target appliance has a RAID 6 configuration, allowing for up to two simultaneous hard drive failures without service interruption. Early Write software feature continuously validates data integrity.

Improved disaster recovery capability is provided by the DR4000 through deduplicated replication. Replication enables better disaster tolerance without the operational costs associated with transporting data offsite on physical tape. Replication can be scheduled to occur during non-peak periods and prioritizes ingest data over replication data to ensure optimal back up windows. Deduplication coupled with replication can minimize the costs and inefficiencies associated with distributed backup environments.

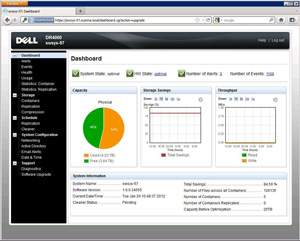

Effective management is critical for obtaining full value from deduplication deployments. The DR4000 provides a graphical interface giving an overview of the system, including system status, hardware and software alerts, storage capacity and savings, and important system information such as system and software versions.

The DR4000 automatically monitors the health of the hardware and verifies the integrity of the system software. The health status of the system is reported in the graphical user interface. Critical hardware and software issues are displayed in the graphical user interface and can be sent via email and SNMP traps for immediate notification.

The DR4000 includes the Dell Remote Access Controller 6 (iDRAC6) Enterprise option providing full remote management including remote keyboard, mouse and video (KVM) console, remote virtual media, power control and event management. The system also provides a rich CLI (command-line interface) which can be used to script operations needed to manage the system.

Future-proof your data center

A cornerstone technology of the Dell Fluid Data Architecture, Dell's deduplication and compression technology found in the DR4000 delivers a data reduction and protection solution with the future built-in. By accelerating and streamlining the backup process the DR4000 ensures that information restores are delivered in a timely and accurate manner — in time with business needs. Less data and less management processes frees up administrator time to work on more strategically important initiatives, at the same time that protection against downtime and disaster has been augmented. The DR4000 changes the economics of disk-based data protection.

*Please see Technical Specifications for more information regarding certifications of backup software vendors.

Key Benefits:

Simple, affordable solution

The DR4000 is a high-performance, disk-based backup and recovery appliance that is simple to deploy and manage, and offers unsurpassed total cost of ownership benefits. Features such as innovative firmware and an all-inclusive licensing model provide optimal functionality and help eliminate the hidden costs of future feature upgrades. The DR4000 has a simple installation process with intuitive remote setup and management capabilities, and is available in three logical capacity points—35TB, 70TB, and 130TB¹— ideal for small enterprise and remote office environments.

Harness the power of deduplication

Through the use of innovative Dell deduplication and compression technology, the DR4000 can help achieve a data-reduction level up to 15:1. This reduction in data means more backup data can be retained longer and in the same footprint. By removing redundant data, the DR4000 deduplication and compression appliance delivers fast, reliable backup and restore functionality, reduces media usage and power and cooling requirements, and improves overall data protection and retention costs. The benefits of data deduplication can extend across the enterprise as well—through the DR4000 deduplicated replication function—to provide a complete backup solution for multi-site environments. Shorter recovery time objectives (RTO) and more attainable recovery point objectives (RPO) can also be assured as critical backup data remains on disk and online longer. Capital and administrative costs are diminished at the same time as internal service level agreements (SLAs) are more easily met.

Understanding the problem

Dell Services can help reduce IT complexity, lower costs, and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team takes a holistic view of your needs and designs solutions for your environment and business objectives while leveraging proven delivery methods, local talent, and in-depth domain knowledge for the lowest TCO.²

¹ See feature table for specific capacity information.
² Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions.

Product Views:

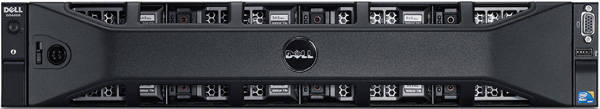

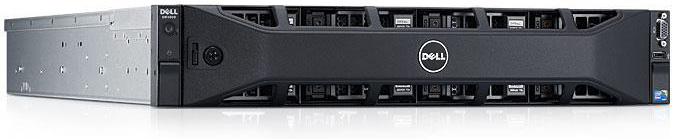

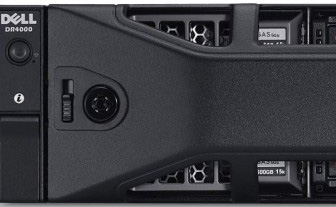

Front View

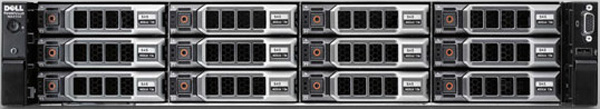

Front Open (12 Drives) View

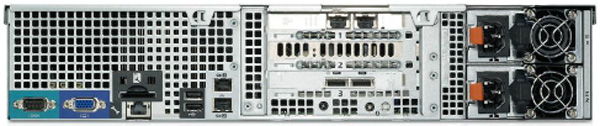

Rear View

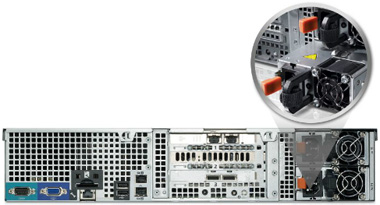

Turnkey Solution A simple, secure and affordable data reduction and disaster recovery solution.	Energy Efficient Power Supplies Use less power without compromising system or business productivity

Technical Specifications:

Dell DR4000 Backup Target Appliance
Form factor	2U Rackmount
Internal storage	Redundant OS storage on dedicated disks. (Inside chassis) 12 3.5' drives, Near Line SAS - Hardware RAID 6 Configuration (11 drives + 1 Hot Spare)
Protocol support	NFS v3, CIFS
Networking	4 Port 1GbE (base-T) or 2 Port 10GbE (base-T) per node
Systems management	iDRAC 6 Enterprise
Physical dimensions	2U RAC-mountable chassis or 26.17" (66.46cm) D x 17.53" (44.52cm) W x 3.42" (8.67cm) H with bezel attached
Rack weight	63.80 lbs (29.0 kg), maximum configuration
Capacity points	Available in 3 configurations: 2.7TB post-RAID (35TB logical) 5.4TB post-RAID (70TB logical) 9.0TB post-RAID (130TB logical)
Wattage	750 W (redundant power supply)
Voltage	100 VAC to 240 VAC, autoranging, 50Hz to 60Hz
Heat Dissipation	2450 BTU/hr (maximum)
Regulatory Model	E13S Series
